32K607 Series
Manufacturer: Rosenberger
Beta
⌘K
SMA BULKHEAD JACK
| Part | Body Finish | Voltage Rating | Dielectric Material | Mating Cycles | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Connector Style | Center Contact Material | Housing Color | Connector Type | Cable Group | Contact Termination | Shield Termination | Mounting Feature | Frequency - Max [Max] | Number of Ports | Mounting Type | Impedance | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

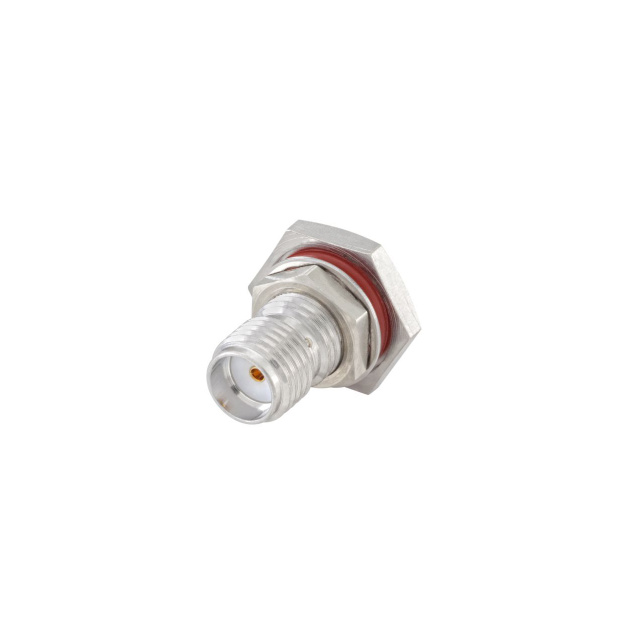

 Rosenberger | White Bronze | 480 V | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | Gold | -65 ░C | 165 °C | Threaded | SMA | Beryllium Copper | Silver | Female Socket Jack | RG-316 | Solder | Crimp | Bulkhead | 12.4 GHz | 1 | Panel Mount | 50 Ohms | |

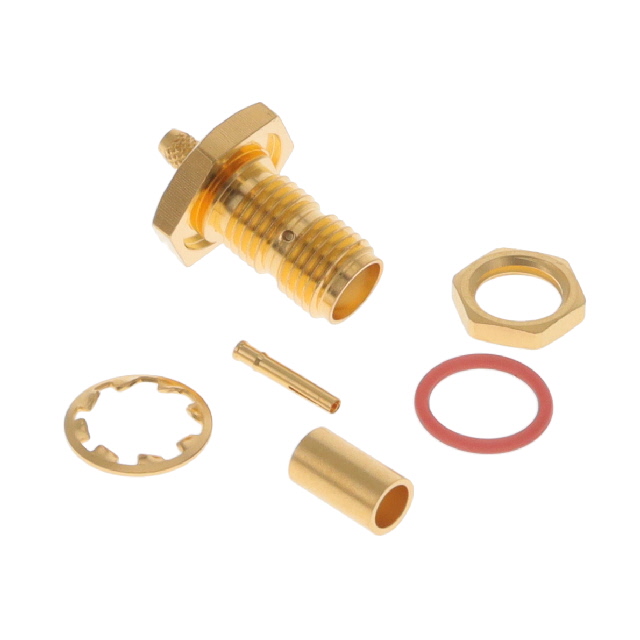

 Rosenberger | Gold | 480 V | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | Gold | -65 ░C | 165 °C | Threaded | SMA | Beryllium Copper | Gold | Female Socket Jack | 188A 316 RG-174A | Solder | Crimp | Bulkhead - Front Side Nut | 12.4 GHz | 1 | Panel Mount | 50 Ohms | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut |
