CAB431RF Series
Manufacturer: GCT
Beta
⌘K

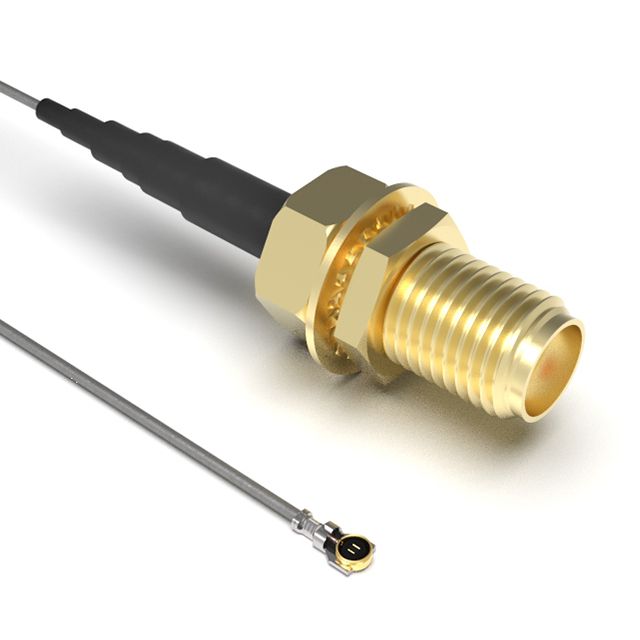

RF CABLE ASSEMBLIES I-PEX MHF 5L RA PLUG2SMA STRJCK R MT, 6GHZ,200MM, 1.13MM GREY
| Part | Color | 2nd Connector Mounting Type | Overall Impedance | 2nd Connector | 2nd Contact Gender | 1st Contact Gender | Length | Length | 1st Connector Mounting Feature | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Impedance | 1st Connector Mounting Type | 1st Connector | Cable Type | Cable Type [diameter] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gray | Free Hanging (In-Line) | 50 Ohms | IPEX MHF5L Plug Right Angle | Female | Female | 200 mm | 7.874 in | Bulkhead - Front Side Nut | 6000 MHz | 85 °C | -40 C | 50 Ohms | Panel Mount | SMA Jack | Coaxial Cable | 1.13 mm | SMA to IPEX MHF5L | |
Gray | Free Hanging (In-Line) | 50 Ohms | I-PEX MHF5L Plug Right Angle | Female | Female | 200 mm | 7.874 in | Bulkhead - Front Side Nut | 6000 MHz | 85 °C | -40 C | 50 Ohms | Panel Mount | SMA Jack | Coaxial Cable | 1.13 mm | SMA to I-PEX MHF5L |
