Pts8410 Series Series

Tact 3.6 x 3.5, 1.25 mm H, Microminiature SMT Side Actuated Tactile Switches Tact 3.6 x 3.5~ 1.25 mm H~ Microminiature SMT Side Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tact 3.6 x 3.5, 1.25 mm H, Microminiature SMT Side Actuated Tactile Switches Tact 3.6 x 3.5~ 1.25 mm H~ Microminiature SMT Side Actuated

Part	Contact Rating @ Voltage	Actuator Type	Actuator Orientation	Features	Switch Function	Switch Travel	Mounting Type	Illumination	Operating Force	Termination Style	Outline [y]	Outline [x]	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit
Littelfuse/Commercial Vehicle Products PTS841 ESD GK SMTR LFS	0.05 A 12 VDC	Rectangular Button	Side Actuated	Grounding Pin	Off-Mom	0.2 mm	Surface Mount Right Angle	Non-Illuminated	0.25 kgf	Gull Wing	3.5 mm	3.6 mm	100000 Cycles	85 °C	-40 °C	SPST-NO

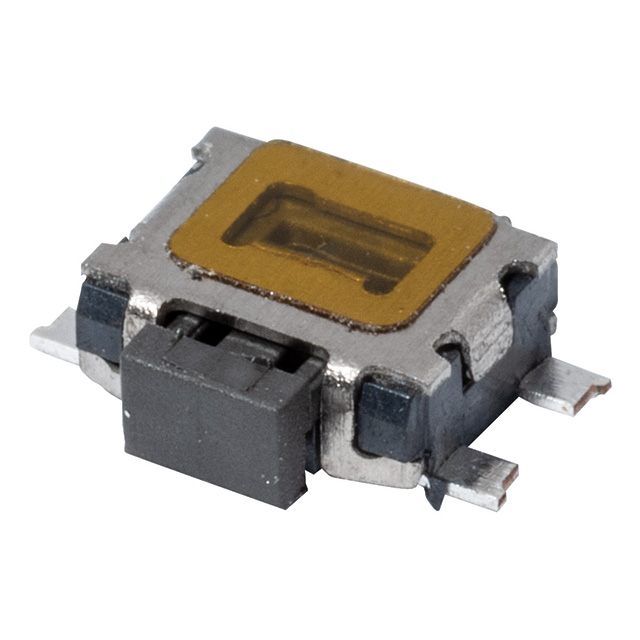

Littelfuse/Commercial Vehicle Products PTS841 GM SMTR LFS	0.05 A 12 VDC	Rectangular Button	Side Actuated		Off-Mom	0.2 mm	Surface Mount Right Angle	Non-Illuminated	180 gf	Gull Wing	3.5 mm	3.6 mm	100000 Cycles	85 °C	-40 °C	SPST-NO

Catalog

Tact 3.6 x 3.5, 1.25 mm H, Microminiature SMT Side Actuated Tactile Switches Tact 3.6 x 3.5~ 1.25 mm H~ Microminiature SMT Side Actuated

Key Features

• 3.6 x 3.5 form factor

• Height 1.25 mm

• IP40

Description

The PTS841 series microminiature SMT side actuated tactile switches are available with 2 different actuation forces in a small 3.6 x 3.5 form factor and reduced height of 1.25 mm. C&K's PTS841 is ideal for small handheld and wearable devices. It also includes ground pin and peg option to reinforce the shear strength on the PCB.
