Schaffner RN-Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

CMC 12MH 300MA 2LN TH

...

Part	DC Resistance (DCR) (Max)	Inductance @ Frequency	Approval Agency	Current Rating (Max) [Max]	Package / Case	Mounting Type	Height (Max) [z]	Height (Max) [z]	Number of Lines	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Filter Type	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [Max] [z]	Height (Max)	Size / Dimension [x]	Size / Dimension [x]	Height (Max) [z]
TE Connectivity AMP Connectors RN102-0.3-02-12M	1.1 Ohm	12 mH	ENEC UR VDE	300 mA	4 PC Pin Horizontal	Through Hole	9.3 mm	0.366 in	2	300 V	14 mm	0.551 in	0.551 in	14 mm	Power Line	-40 C	100 °C

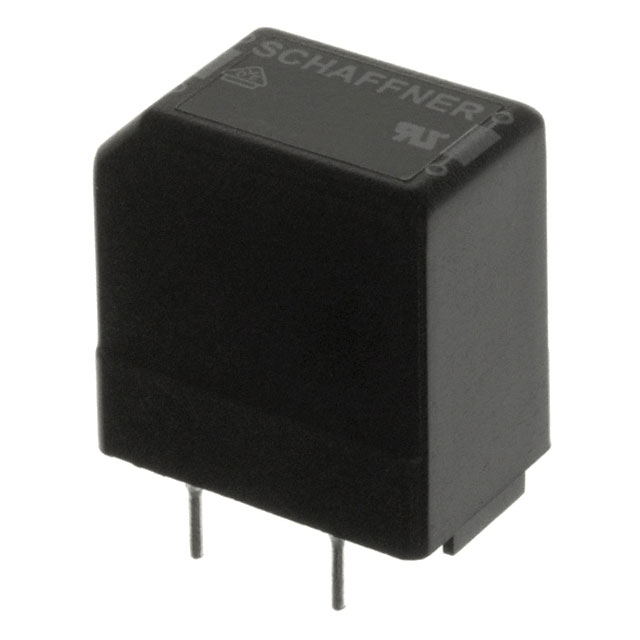

TE Connectivity AMP Connectors RN214-0.5-02-39M	830 mOhm	10 kHz 39 mH	ENEC UR VDE	500 mA	Vertical 4 PC Pin	Through Hole			2	300 V	15.5 mm		0.61 in		Power Line	-40 C	100 °C	0.996 in	25.3 mm	0.906 in	23 mm
TE Connectivity AMP Connectors RN102-0.3-02-12M	1.1 Ohm	12 mH	ENEC UR VDE	300 mA	4 PC Pin Horizontal	Through Hole	9.3 mm	0.366 in	2	300 V	14 mm	0.551 in	0.551 in	14 mm	Power Line	-40 C	100 °C

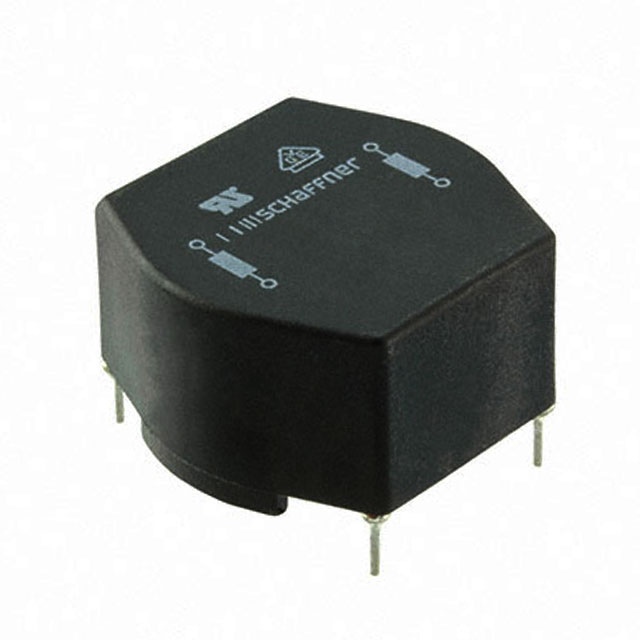

TE Connectivity AMP Connectors RN142-0.5-02-82M	2.7 Ohm	10 kHz 82 mH	ENEC UR VDE	500 mA	4 PC Pin Horizontal	Through Hole			2	300 V	1.28 in 32.5 mm				Power Line	-40 C	100 °C	0.787 in	20 mm		1.303 in 33.1 mm
TE Connectivity AMP Connectors RN216-0.5-02-47M	960 mOhm	47 mH	ENEC UR VDE	500 mA	Vertical 4 PC Pin	Through Hole			2	300 V	15.5 mm		0.61 in		Power Line	-40 C	100 °C	0.996 in	25.3 mm	0.906 in	23 mm
TE Connectivity AMP Connectors RN102-0.6-02-4M4	380 mOhm	4.4 mH	ENEC UR VDE	600 mA	4 PC Pin Horizontal	Through Hole	9.3 mm	0.366 in	2	300 V	14 mm	0.551 in	0.551 in	14 mm	Power Line	-40 C	100 °C

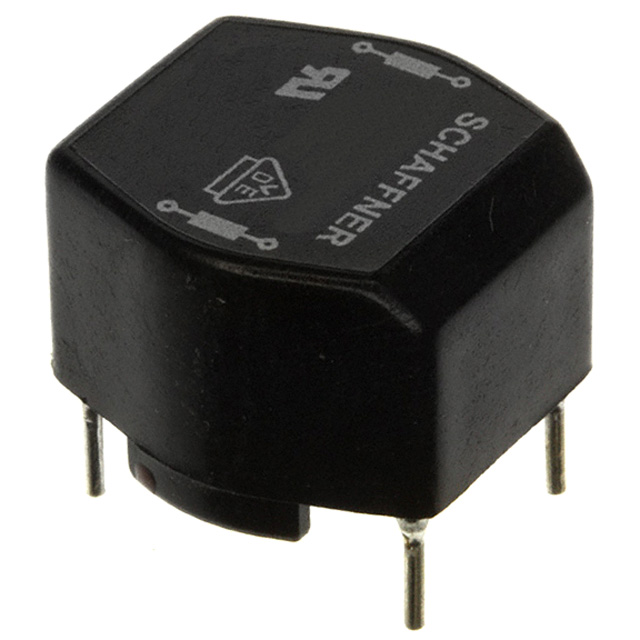

TE Connectivity AMP Connectors RN112-1.5-02-3M3	102 mOhm	3.3 mH	ENEC UR VDE	1.5 A	4 PC Pin Horizontal	Through Hole	12.9 mm	0.508 in	2	300 V	17.1 mm		0.673 in		Power Line	-40 C	100 °C			0.697 in	17.7 mm

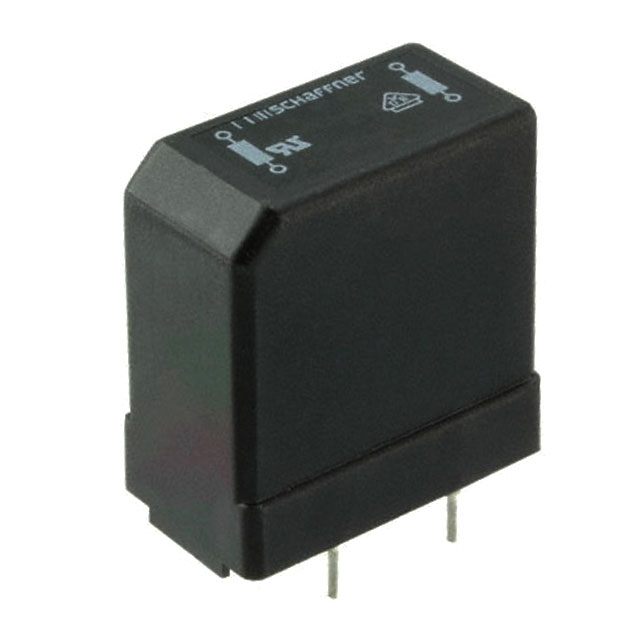

TE Connectivity AMP Connectors RN232-1.6-02-10M	170 mOhm	10 mH 10 kHz	ENEC UR VDE	1.6 A	Vertical 4 PC Pin	Through Hole		34.6 mm	2	300 V	18 mm		0.709 in		Power Line	-40 C	100 °C			1.22 in	31 mm	1.362 in
TE Connectivity AMP Connectors RN112-0.5-02-15M	700 mOhm	10 kHz 15 mH	ENEC UR VDE	500 mA	4 PC Pin Horizontal	Through Hole	12.9 mm	0.508 in	2	300 V	17.1 mm		0.673 in		Power Line	-40 C	100 °C			0.697 in	17.7 mm

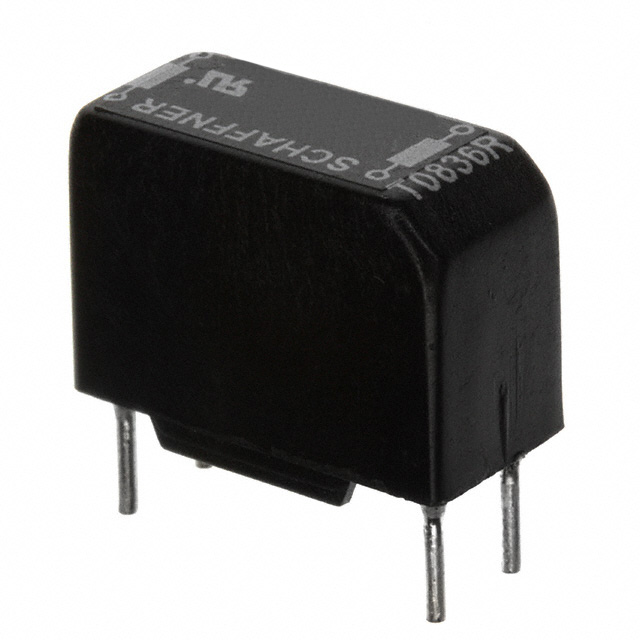

TE Connectivity AMP Connectors RN202-0.6-02-4M4	380 mOhm	4.4 mH	ENEC UR VDE	600 mA	Vertical 4 PC Pin	Through Hole		13.8 mm	2	300 V	8.8 mm		0.346 "		Power Line	-40 C	100 °C			0.717 in	18.2 mm	0.543 in
