WP793 Series

Catalog

LED RED DIFFUSED 8MM ROUND T/H

Part	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Size [diameter]	Height (Max) [z]	Size / Dimension [diameter]	Configuration	Supplier Device Package [diameter]	Current - Test	Lens Color	Package / Case	Lens Style	Millicandela Rating	Wavelength - Dominant	Lens Transparency	Color	Mounting Type	Viewing Angle	Supplier Device Package

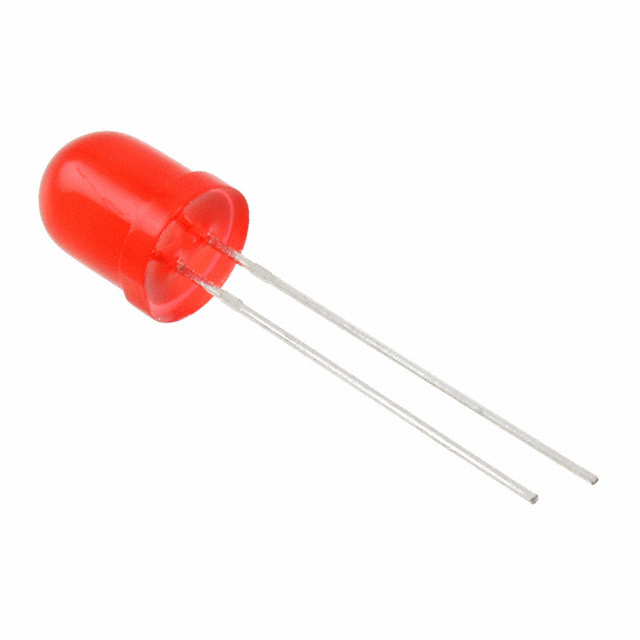

Kingbright WP793ID	627 nm	2 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Red	Radial	Round with Domed Top	60 mcd	617 nm	Diffused	Red	Through Hole	30 °
Kingbright WP793SRD/D	655 nm	1.85 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Red	Radial	Round with Domed Top	140 mcd	640 nm	Diffused	Red	Through Hole	30 °

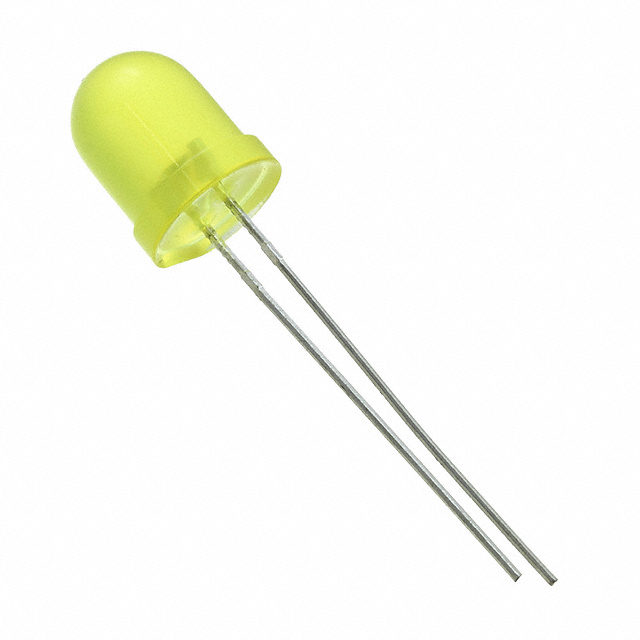

Kingbright WP793YD	590 nm	2.1 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Yellow	Radial	Round with Domed Top	50 mcd	588 nm	Diffused	Yellow	Through Hole	30 °
Kingbright WP793SRD/F	660 nm	1.85 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Red	Radial	Round with Domed Top	180 mcd	640 nm	Diffused	Red	Through Hole	30 °
Kingbright WP793SRD/G	660 nm	1.85 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Red	Radial	Round with Domed Top	1500 mcd	640 nm	Diffused	Red	Through Hole	30 °
Kingbright WP793ED	627 nm	2 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Orange	Radial	Round with Domed Top	60 mcd	617 nm	Diffused		Through Hole	30 °

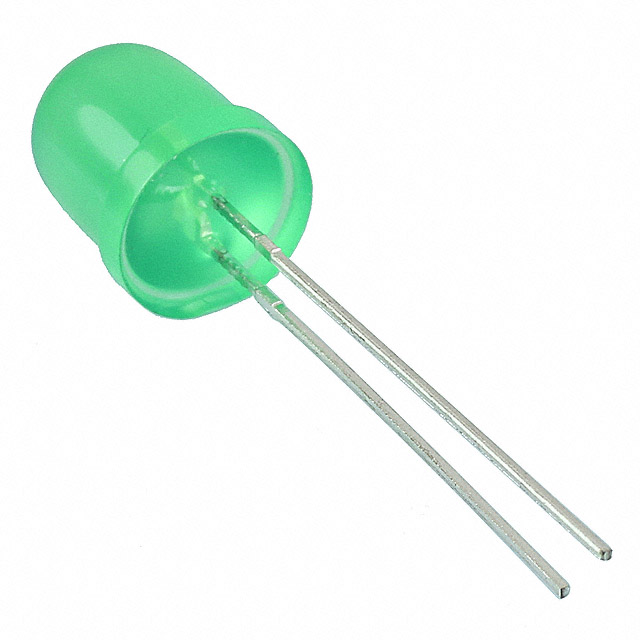

Kingbright WP793GD	565 nm	2.2 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Green	Radial	Round with Domed Top	60 mcd	568 nm	Diffused	Green	Through Hole	30 °
Kingbright WP793SRC/D	655 nm	1.85 V	8 mm Dia	11 mm 12.25 mm	8 mm	Independent Standard	8 mm	20 mA	Colorless	Radial	Round with Domed Top	800 mcd 2000 mcd	640 nm	Clear	Red	Through Hole	15 °	8 mm
Kingbright WP793SRD/J4	660 nm	2.1 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Red	Radial	Round with Domed Top	600 mcd	640 nm	Diffused	Red	Through Hole	30 °
Kingbright WP793SRD/H	660 nm	1.85 V	8 mm Dia	11 mm	8 mm	Standard	8 mm	20 mA	Red	Radial	Round with Domed Top	1800 mcd	640 nm	Diffused	Red	Through Hole	30 °
