3296 Series

Catalog

CONN RING CIRC 14-16AWG #10

Part	Color	Termination	Stud/Tab Size	Contact Material	Thickness	Thickness	Contact Finish	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Features	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Terminal Type	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Foil Crimp Area [y]	Foil Crimp Area [y]	Foil Crimp Area [x]	Foil Crimp Area [x]

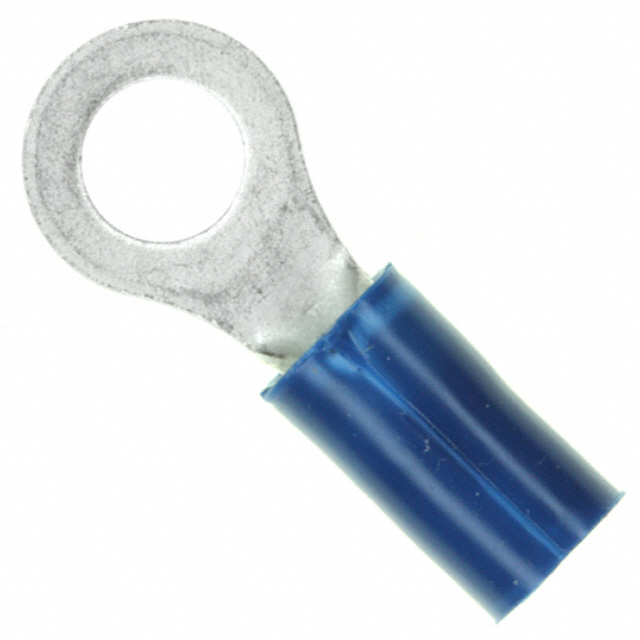

TE Connectivity Raychem Cable Protection 32960	Blue	Crimp	10 Stud	Copper	0.031 in	0.79 mm	Tin	Poly-Vinyl Chloride (PVC)	22.12 mm	0.871 in	Serrated Termination	0.145 in 3.68 mm	0.105 in	2.67 mm	Circular	Free Hanging (In-Line)	0.343 in	8.71 mm	Insulated
TE Connectivity Raychem Cable Protection 32961	Blue	Crimp	0.25 Stud	Copper	0.031 in	0.79 mm	Tin	Poly-Vinyl Chloride (PVC)	27.69 mm	1.09 in	Serrated Termination	0.145 in 3.68 mm	0.105 in	2.67 mm	Circular	Free Hanging (In-Line)			Insulated	11.91 mm	0.469 in

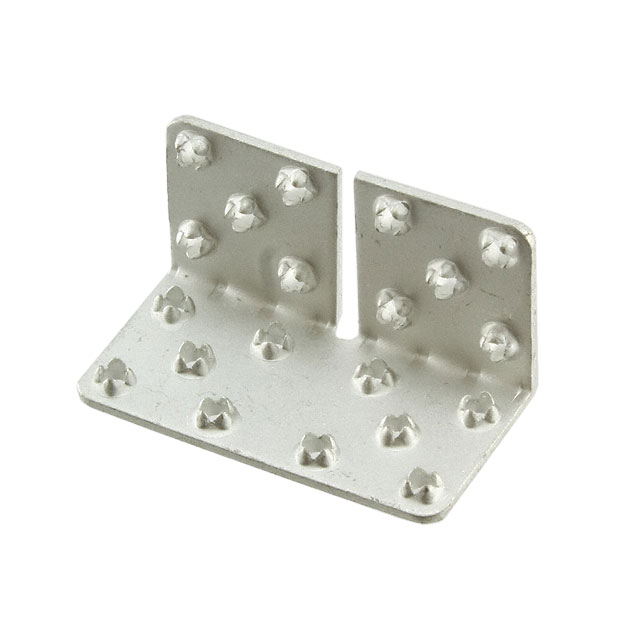

TE Connectivity Raychem Cable Protection 329657				Copper			Tin								Double Face							12 AWG	10 AWG	0.454 "	11.53 mm	0.454 in	11.53 mm

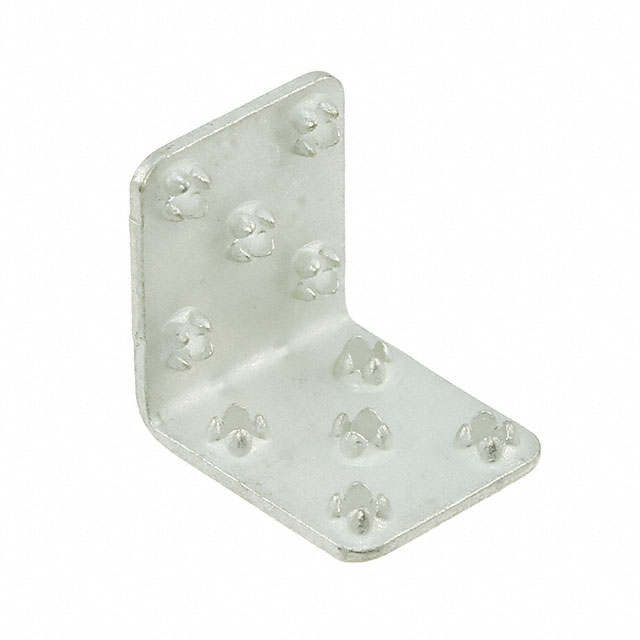

TE Connectivity Raychem Cable Protection 329656				Copper			Tin								Double Face							12 AWG	10 AWG	0.454 "	11.53 mm	0.454 in	11.53 mm
