TPS536C7 Series
Dual-channel D-CAP+™, PMBus (N+M ≤ 12 phases) step-down, multiphase PWM controller
Manufacturer: Texas Instruments
Catalog
Dual-channel D-CAP+™, PMBus (N+M ≤ 12 phases) step-down, multiphase PWM controller
Beta
⌘K
Dual-channel D-CAP+™, PMBus (N+M ≤ 12 phases) step-down, multiphase PWM controller
Dual-channel D-CAP+™, PMBus (N+M ≤ 12 phases) step-down, multiphase PWM controller
Dual-channel D-CAP+™, PMBus (N+M ≤ 12 phases) step-down, multiphase PWM controller
| Part | Mounting Type | Topology | Duty Cycle (Max) [Max] | Function | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Control Features | Frequency - Switching [Max] | Frequency - Switching [Min] | Supplier Device Package | Output Configuration | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Synchronous Rectifier | Serial Interfaces | Number of Outputs | Clock Sync | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

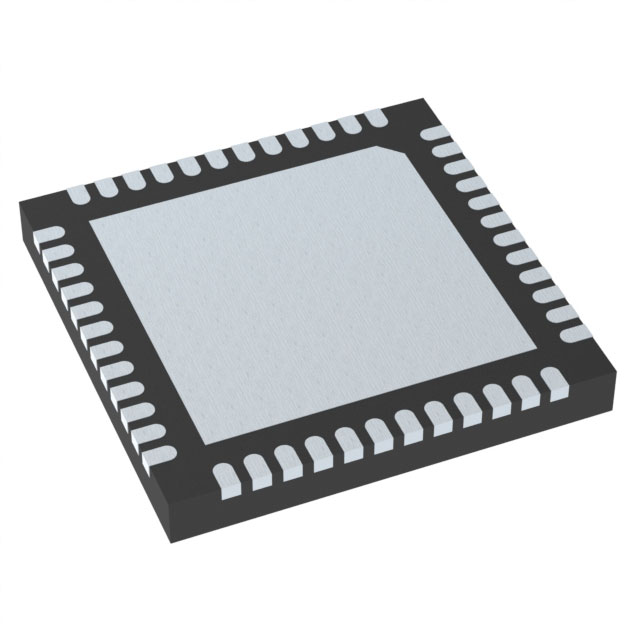

 Texas Instruments | Surface Mount | Buck | 50 % | Step-Down | -40 °C | 125 °C | 48-VFQFN Exposed Pad | Current Limit Enable Frequency Control Phase Control Ramp Soft Start | 2 MHz | 300 kHz | 48-VQFN (6x6) | Positive | 4.5 V | 18 V | PMBus | 1 | |||
Texas Instruments | Surface Mount | Buck | 50 % | Step-Down | -40 °C | 125 °C | 48-VFQFN Exposed Pad | Current Limit Enable Frequency Control Phase Control Ramp | 2 MHz | 300 kHz | 48-VQFN (6x6) | Positive | 4.5 V | 18 V | PMBus | 1 | Transistor Driver |
