0397-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.032 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]

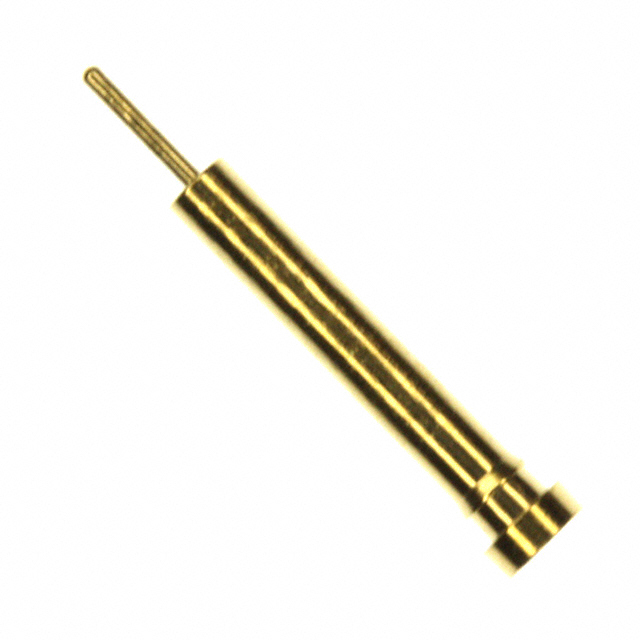

Mill-Max Manufacturing Corp. 0397-2-15-15-06-27-04-0	-55 C	125 °C	Gold	0.22 in	5.59 mm	0.051 in	1.3 mm	2.16 mm	0.085 "	Standard Tail	Beryllium Copper	0.066 in	1.68 mm	0.541 in	13.74 mm	Press-Fit	30 Áin	0.76 Ám	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0397-2-15-01-06-14-04-0	-55 C	125 °C	Gold	0.22 in	5.59 mm	0.051 in	1.3 mm	2.16 mm	0.085 "	Standard Tail	Beryllium Copper	0.066 in	1.68 mm	0.541 in	13.74 mm	Press-Fit	10 Áin	0.25 Ám	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0397-2-15-15-06-14-04-0	-55 C	125 °C	Gold	0.22 in	5.59 mm	0.051 in	1.3 mm	2.16 mm	0.085 "	Standard Tail	Beryllium Copper	0.066 in	1.68 mm	0.541 in	13.74 mm	Press-Fit	10 Áin	0.25 Ám	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0397-2-15-80-06-80-04-0	-55 C	125 °C	Tin	0.22 in	5.59 mm	0.051 in	1.3 mm	2.16 mm	0.085 "	Standard Tail	Beryllium Copper	0.066 in	1.68 mm	0.541 in	13.74 mm	Press-Fit	200 Áin	5.08 Ám	0.51 mm	0.02 in

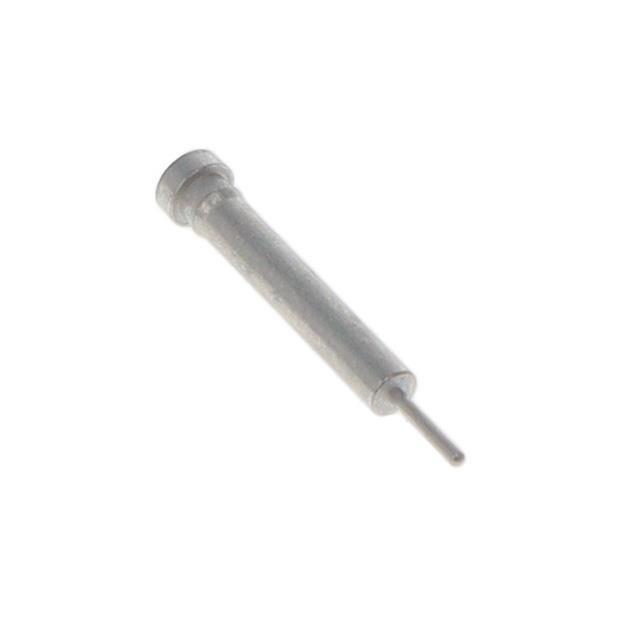

Mill-Max Manufacturing Corp. 0397-2-15-80-06-14-04-0	-55 C	125 °C	Gold	0.22 in	5.59 mm	0.051 in	1.3 mm	2.16 mm	0.085 "	Standard Tail	Beryllium Copper	0.066 in	1.68 mm	0.541 in	13.74 mm	Press-Fit	10 Áin	0.25 Ám	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0397-2-15-01-06-27-04-0	-55 C	125 °C	Gold	0.22 in	5.59 mm	0.051 in	1.3 mm	2.16 mm	0.085 "	Standard Tail	Beryllium Copper	0.066 in	1.68 mm	0.541 in	13.74 mm	Press-Fit	30 Áin	0.76 Ám	0.51 mm	0.02 in
