R12531 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

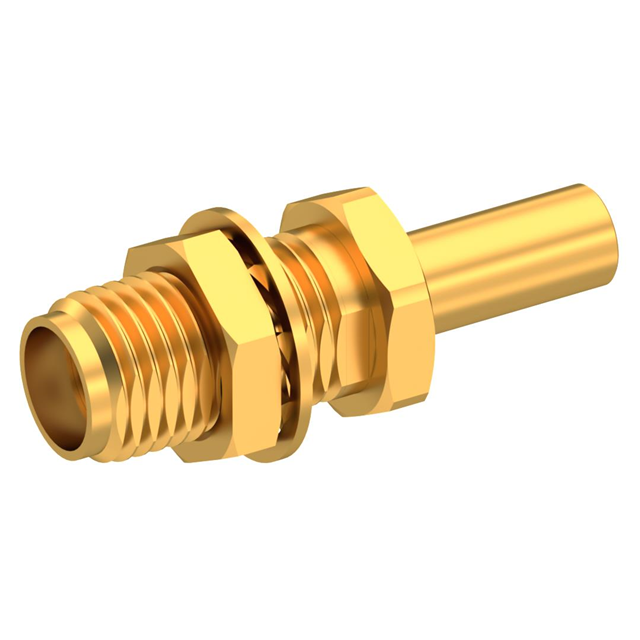

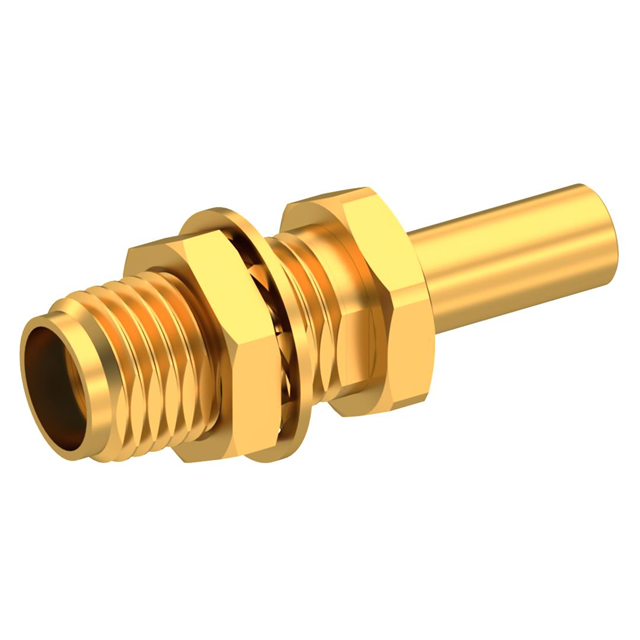

SMA / STRAIGHT BULKHEAD JACK FUL
| Part | Dielectric Material | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Center Contact Plating | Mounting Type | Connector Type | Connector Style | Fastening Type | Impedance | Number of Ports | Mounting Feature | Shield Termination | Frequency - Max [Max] | Cable Group | Center Contact Material | Housing Color | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Stainless Steel | 250 V | Gold | Panel Mount | Female Socket Jack | SMA | Threaded | 50 Ohms | 1 | Bulkhead - Front Side Nut | Crimp | 12.4 GHz | RG-316DS | Beryllium Copper | Gold | Crimp | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Stainless Steel | 335 V | Gold | Panel Mount | Female Socket Jack | SMA | Threaded | 50 Ohms | 1 | Bulkhead - Front Side Nut | Crimp | 12.4 GHz | RG-58 | Beryllium Copper | Gold | Crimp | 141 |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Stainless Steel | 335 V | Gold | Panel Mount | Female Socket Jack | SMA | Threaded | 50 Ohms | 1 | Bulkhead - Front Side Nut | Crimp | 12.4 GHz | RG-316DS | Beryllium Copper | Gold | Crimp | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Stainless Steel | 500 V | Gold | Panel Mount | Female Socket Jack | SMA | Threaded | 50 Ohms | 1 | Bulkhead - Front Side Nut | Crimp | 12.4 GHz | RG-174 | Beryllium Copper | Gold | Crimp | 316 |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Stainless Steel | 250 V | Gold | Panel Mount | Female Socket Jack | SMA | Threaded | 50 Ohms | 1 | Bulkhead - Front Side Nut | Crimp | 12.4 GHz | RG-316 Double Braid | Beryllium Copper | Silver | Crimp |
