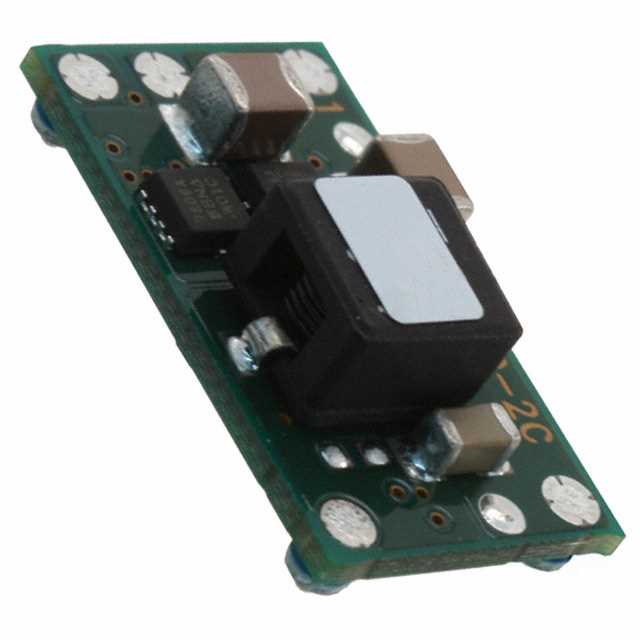

PTH12050 Series

Catalog

DC DC CONVERTER 1.2-5.5V 33W

Part	Current - Output (Max) [Max]	Mounting Type	Applications	Power (Watts)	Efficiency	Number of Outputs	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
ARTESYN / Advanced Energy PTH12050WAD	6 A	Through Hole	ITE (Commercial)	33 W	93 %	1	6-DIP Module	Remote On/Off SCP UVLO	85 °C	-40 C	10.8 V	13.2 V	Non-Isolated PoL Module	1.2 V	5.5 V	0.87 in	22.1 mm	12.7 mm	0.34 in	0.5 "	8.6 mm

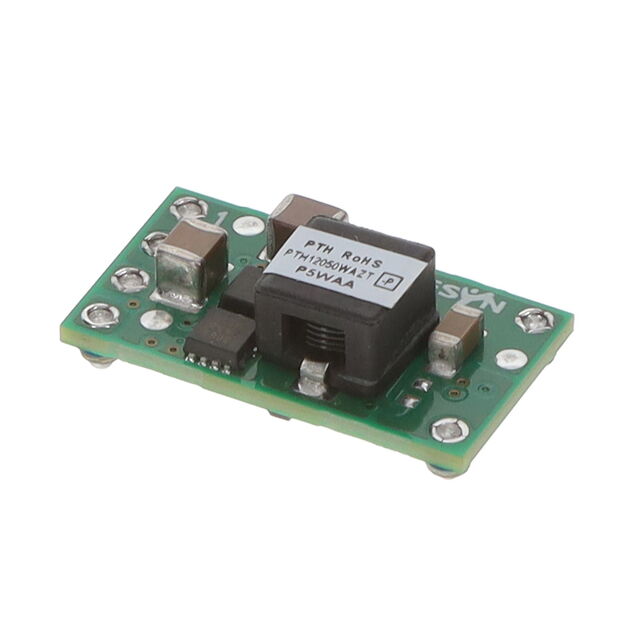

ARTESYN / Advanced Energy PTH12050WAZT	6 A	Surface Mount	ITE (Commercial)	33 W	93 %	1	6-SMD Module	Remote On/Off SCP UVLO	85 °C	-40 C	10.8 V	13.2 V	Non-Isolated PoL Module	1.2 V	5.5 V	0.87 in			0.34 in	0.5 "		8.5 mm 12.7 mm 22.1 mm
ARTESYN / Advanced Energy PTH12050LAZ	6 A	Surface Mount	ITE (Commercial)	11 W	88 %	1	6-SMD Module	OCP Remote On/Off UVLO	85 °C	-40 C	10.8 V	13.2 V	Non-Isolated PoL Module			0.87 in	22.1 mm	12.6 mm	0.34 in	0.5 "	8.5 mm		0.8 V	1.8 V
ARTESYN / Advanced Energy PTH12050LAD	6 A	Through Hole	ITE (Commercial)	33 W	88 %	1	6-DIP Module	Remote On/Off SCP UVLO	85 °C	-40 C	10.8 V	13.2 V	Non-Isolated PoL Module			0.87 in	22.1 mm	12.6 mm	0.34 in	0.5 "	8.5 mm		0.8 V	1.8 V
ARTESYN / Advanced Energy PTH12050WAZ	6 A	Surface Mount	ITE (Commercial)	33 W	93 %	1	6-SMD Module	OCP Remote On/Off UVLO	85 °C	-40 C	10.8 V	13.2 V	Non-Isolated PoL Module	1.2 V	5.5 V	0.87 in	22.1 mm	12.7 mm	0.34 in	0.5 "	8.6 mm
