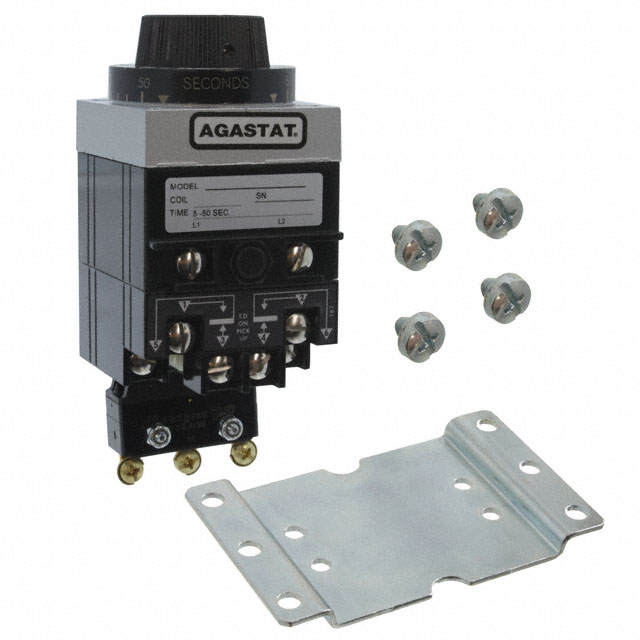

1423157 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

RELAY TIME DELAY

Part	Contact Rating @ Voltage	Circuit	Voltage - Supply	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Relay Type	Termination Style	Function	Timing Adjustment Method
TE Connectivity Aerospace, Defense and Marine 5-1423157-6	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	1 Sec	300 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012BF	10 A 240 VAC	DPDT (2 Form C)	240 VAC	Input Voltage	1 Min	10 Min	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012AE	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	20 Sec	200 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012ADL	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	5 Sec	50 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012AD	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	5 Sec	50 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012BFX	10 A 240 VAC	DPDT (2 Form C)	240 VAC	Input Voltage	1 Min	10 Min	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012ACLL	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	1.5 Sec	15 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012CB	10 A 240 VAC	DPDT (2 Form C)	480 VAC	Input Voltage	0.5 Sec	5 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 4-1423157-5
TE Connectivity Aerospace, Defense and Marine 7012BKX	10 A 240 VAC	DPDT (2 Form C)	240 VAC	Input Voltage	1 Sec	300 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
