AFB0305 Series

Catalog

FAN AXIAL 30X10MM BALL 5VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Voltage - Rated	Noise	Termination	Weight	Weight	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Fan Type	Bearing Type	Power (Watts)	RPM	Approval Agency	Features
Delta Electronics AFB0305HA-A	Plastic	30000 Hrs	Plastic	5.5 V	4 VDC	0.098 mł/min	3.5 CFM	5 V	25 dB(A)	2 Wire Leads	10.89 g	0.024 lb	10 mm	70 °C	-10 °C	30 mm	30 mm	0.1 in H2O	24.9 Pa	Tubeaxial	Ball	0.8 W	9000 RPM	CE CSA UL VDE

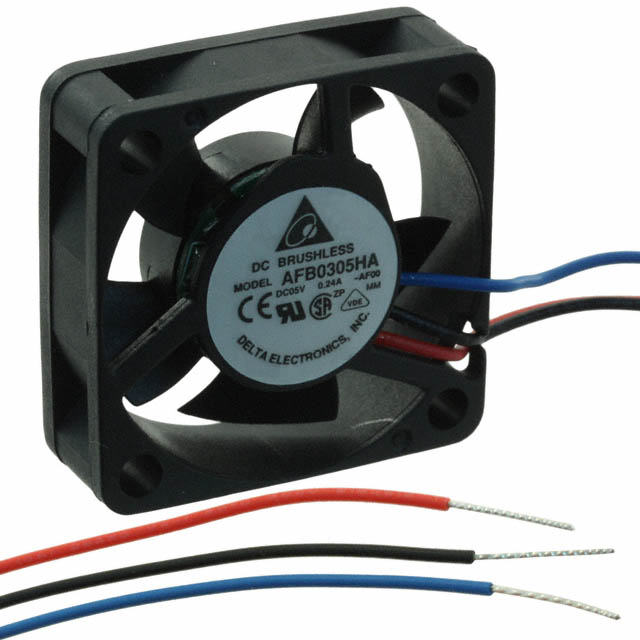

Delta Electronics AFB0305HA-AF00	Plastic	30000 Hrs	Plastic	5.5 V	4 VDC	0.098 mł/min	3.5 CFM	5 V	25 dB(A)	3 Wire Leads	10.89 g	0.024 lb	10 mm	70 °C	-10 °C	30 mm	30 mm	0.1 in H2O	24.9 Pa	Tubeaxial	Ball	0.8 W	9000 RPM	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)
