06JQ Series

Catalog

CONN RCPT 6POS 0.098 TIN PCB

Part	Contact Material	Contact Shape	Insulation Material	Contact Type	Mounting Type	Voltage Rating	Number of Positions	Mated Stacking Heights	Fastening Type	Insulation Color	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Termination	Connector Type	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]

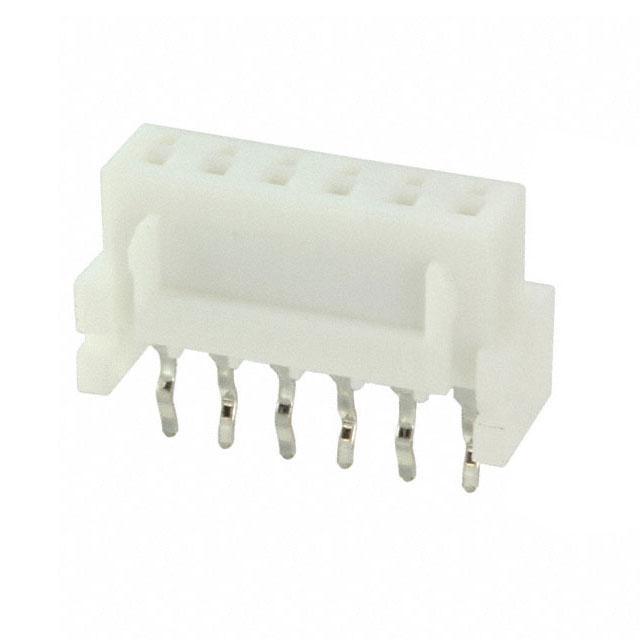

JST Sales America Inc. 06JQ-BT	Phosphor Bronze	Square	Nylon 6/6 Polyamide (PA66)	Female Socket	Through Hole	250 V	6	11.8 mm	Friction Lock	Natural	All	85 °C	-25 °C	1	UL94 V-0	2.5 mm	0.098 in	9.5 mm	0.374 in	Press-Fit Solder	Receptacle	3 A
JST Sales America Inc. 06JQ-ST	Phosphor Bronze	Square	Nylon 6/6 Polyamide (PA66)	Female Socket	Right Angle Through Hole	250 V	6		Friction Lock	Natural	All	85 °C	-25 °C	1	UL94 V-0	2.5 mm	0.098 in			Press-Fit Solder	Receptacle	3 A	0.236 "	6 mm
