316-83 Series
Manufacturer: Preci-Dip
Beta
⌘K

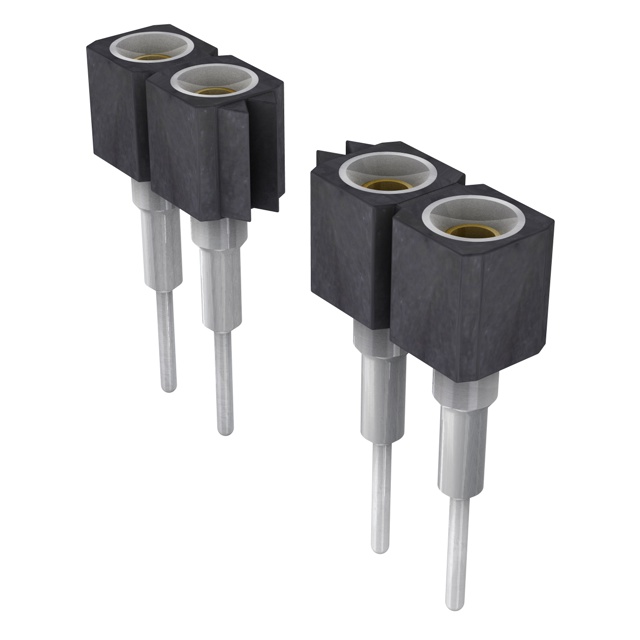

CONN SOCKET 40POS 0.1 GOLD PCB
| Part | Contact Shape | Insulation Material | Contact Material | Number of Rows | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insulation Color | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Current Rating (Amps) | Termination | Contact Finish - Post | Material Flammability Rating | Fastening Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.276 in | 7 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 40 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.709 in | 18 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 15 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.512 in | 13 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 43 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.866 in | 22 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 22 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.433 " | 11 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 62 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.315 in | 8 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 25 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.354 in | 9 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | -55 C | 125 °C | Female Socket | Through Hole | 33 | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.276 in | 7 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 22 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.512 in | 13 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 63 | -55 C | 125 °C | Female Socket | Through Hole | |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | 0.315 in | 8 mm | 0.1 " | 2.54 mm | All | 29.5 µin | 0.75 µm | Black | Gold | 0.126 " | 3.2 mm | Socket | 3 A | Solder | Tin | UL94 V-0 | Push-Pull | 26 | -55 C | 125 °C | Female Socket | Through Hole |
