2273043 Series

Sensor Cables / Actuator Cables M12 x 1.0 straight socket pigt shld A

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

Sensor Cables / Actuator Cables M12 x 1.0 straight socket pigt shld A

Catalog

Sensor Cables / Actuator Cables M12 x 1.0 straight socket pigt shld A

Part	Cable Type	1st Connector Orientation	2nd Connector Type	Cable Material	Assembly Configuration	1st Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Type	Color	Ingress Protection	Length	Length [x]	1st Connector Number of Positions	1st Connector Gender	1st Connector Number of Positions Loaded	Usage	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Feature	Contact Finish - Mating	Shell Material	Connector Type	Primary Material	Applications	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Finish	1st Connector Number of Positions [custom]	1st Connector Number of Positions Loaded	Shielding	Length	Length [x]	Contact Finish Thickness - Mating	Termination	Contact Material	Material Flammability Rating	Insert Material

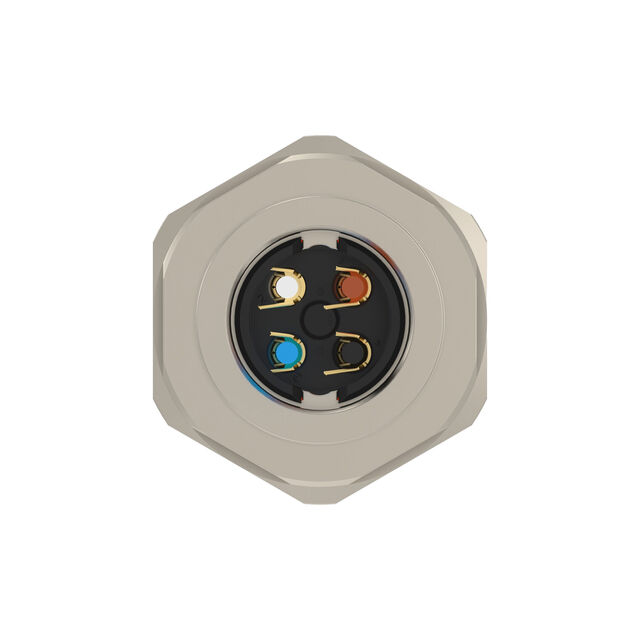

TE Connectivity Raychem Cable Protection T4171110004-001	Individual	A	Wire Leads	Polyvinyl Chloride (PVC)	Standard	Panel Mount	M12	Receptacle	Multiple	IP67 - Dust Tight Waterproof	200 mm	0.66 ft	5	Female Sockets	4	Industrial Environments
TE Connectivity Raychem Cable Protection 1838891-2									Silver	IP67 - Dust Tight Waterproof							M12-4	90 °C	-25 °C	4	Bulkhead - Rear Side Nut	Gold	Zinc Die Cast	Receptacle Female Sockets	Metal	Automotive Industrial	250 VAC	5 A	0.15 µm	5.9 µin	Keyed	Nickel

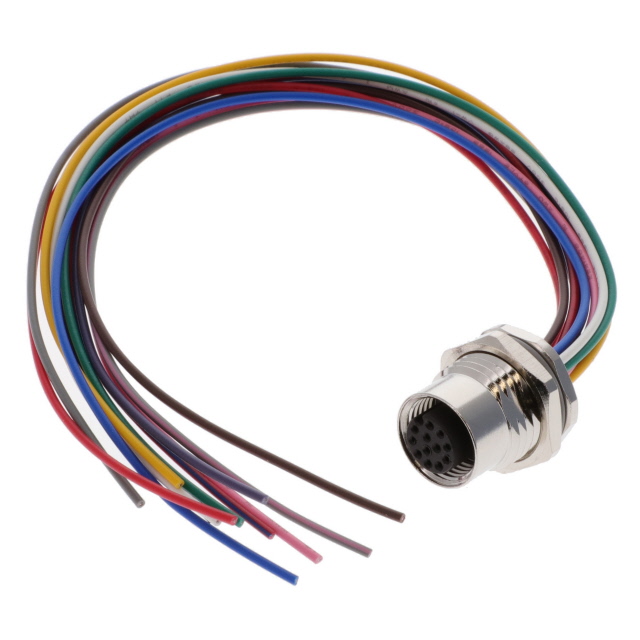

TE Connectivity Raychem Cable Protection T4171130012-001	Individual	A	Wire Leads		Standard	Panel Mount	M12	Plug	Multiple	IP67 - Dust Tight Waterproof	200 mm	0.66 ft		Female Sockets		Industrial Environments																	12	All	Unshielded

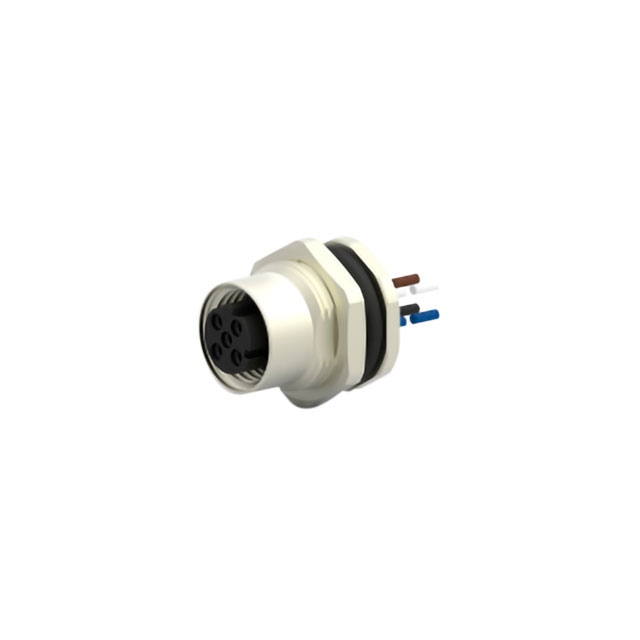

TE Connectivity Raychem Cable Protection T4171110504-001	Individual	D	Wire Leads	Polyvinyl Chloride (PVC)	Standard	Panel Mount	M12	Receptacle	Multiple	IP67 - Dust Tight Waterproof	200 mm	0.66 ft	5	Female Sockets	4	Industrial Environments

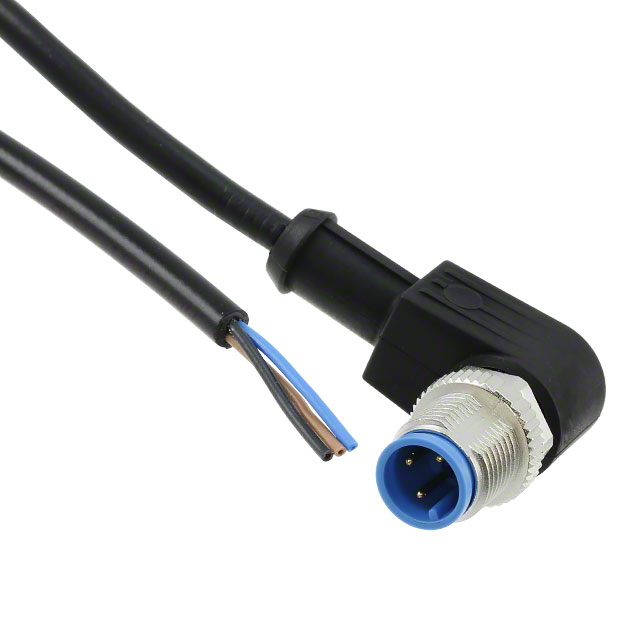

TE Connectivity Raychem Cable Protection 2273076-1	Round	A	Wire Leads	Polyurethane (PUR)	Standard	Free Hanging (In-Line)	M12	Plug Right Angle	Black	IP65 IP67	1.5 m		3	Male Pins		Industrial Environments																		All	Unshielded	4.92 '

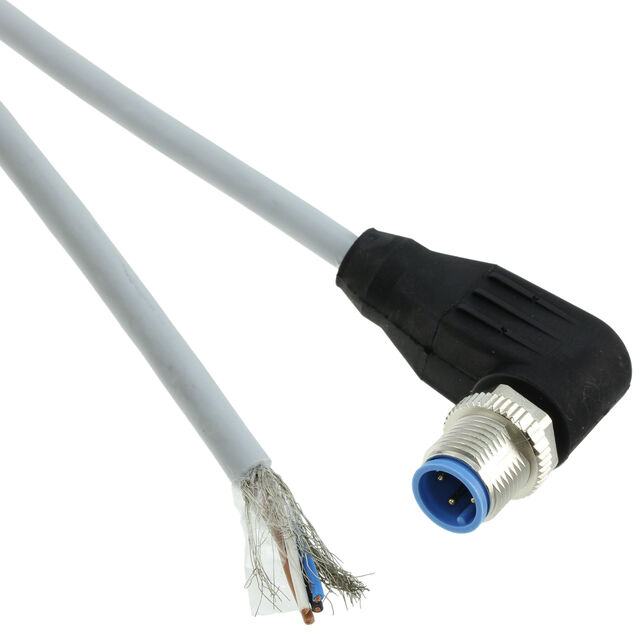

TE Connectivity Raychem Cable Protection 1-2273098-1	Round	A	Wire Leads	Polyvinyl Chloride (PVC)	Standard	Free Hanging (In-Line)	M12	Plug Right Angle	Gray	IP65 IP67	1.5 m		4	Male Pins		Industrial Environments																		All	Shielded	4.92 '
TE Connectivity Raychem Cable Protection 2273104-2	Round	A	Wire Leads	Polyurethane (PUR)	Standard	Free Hanging (In-Line)	M12	Receptacle Right Angle	Black	IP65 IP67		9.84 ft	4	Female Sockets		Industrial Environments																		All	Unshielded		3 m
TE Connectivity Raychem Cable Protection 2273104-3	Round	A	Wire Leads	Polyurethane (PUR)	Standard	Free Hanging (In-Line)	M12	Receptacle Right Angle	Black	IP65 IP67			4	Female Sockets		Industrial Environments																		All	Unshielded

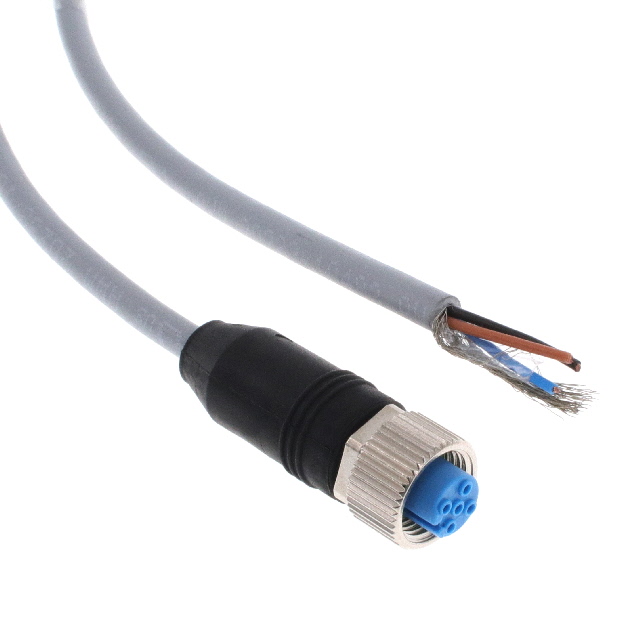

TE Connectivity Raychem Cable Protection 2273043-1	Round	A	Wire Leads	Polyurethane (PUR)	Standard	Free Hanging (In-Line)	M12	Receptacle	Gray	IP65 IP67	1.5 m		3	Female Sockets		Industrial Environments																		All	Shielded	4.92 '

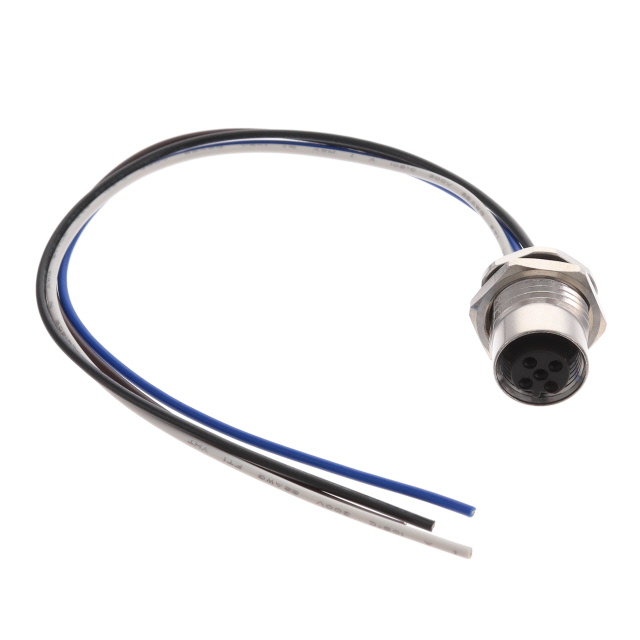

TE Connectivity Raychem Cable Protection T4171110404-001									Silver	IP67 - Dust Tight Waterproof							M12-4	85 °C	-40 °C	4	Bulkhead - Front Side Nut	Gold	Copper Alloy	Female Sockets Plug	Metal	Industrial	250 VDC	4 A			B	Nickel			Shielded			Flash	Wire Leads	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)
