TPS22933 Series

3-Input, 2.5-V to 12-V, 2.4-Ω, 0.05-A power mux with LDO

Catalog

3-Input, 2.5-V to 12-V, 2.4-Ω, 0.05-A power mux with LDO

Part	Applications	Internal Switch(s)	Mounting Type	Ratio - Input:Output	Type	Package / Case	FET Type	Supplier Device Package	Delay Time - OFF	Current - Output (Max) [Max]	Current - Supply	Delay Time - ON	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplied Contents	Function	Utilized IC / Part	Primary Attributes	Primary Attributes	Embedded
Texas Instruments TPS22933ARSER	Handheld/Mobile Devices		Surface Mount	3:2	Source Selector Switch	8-UFQFN	P-Channel	8-UQFN (1.5x1.5)	32 µs	75 mA	2 mA	65 µs	12 V	2.5 V	85 °C	-40 °C

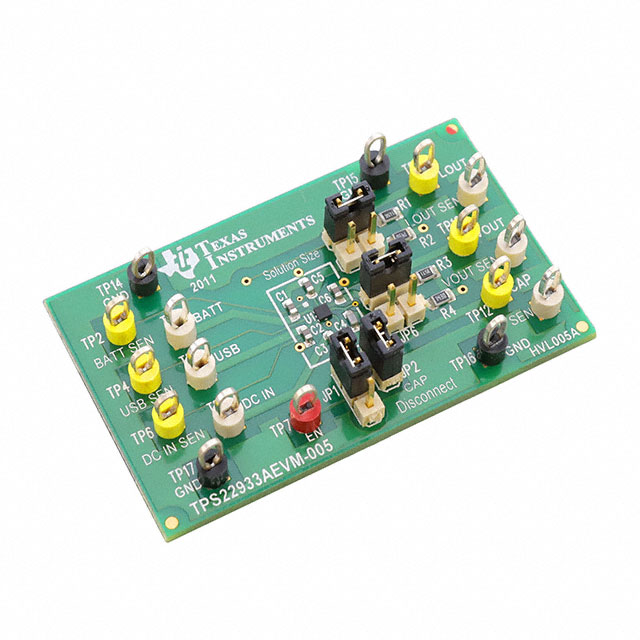

Texas Instruments TPS22933AEVM-005					Power Management												Board(s)	Power Distribution Switch (Load Switch)	TPS22933	50 mA	Three Channel

Catalog

3-Input, 2.5-V to 12-V, 2.4-Ω, 0.05-A power mux with LDO

Key Features

• Three Integrated Load Switches AutomaticallyChoose Highest InputIntegrated 3.6-V Fixed LDOSwitched and Always on LDO OutputsµQFN package 1.5 mm × 1.5 mmInput Voltage Range: 2.5 V to 12 VLow ON-Resistance (rON)rON= 2.4 Ω at VIN= 5.0 VrON= 2.6 Ω at VIN= 4.2 V50-mA Maximum Continuous CurrentLow Threshold Control Input (EN)Switchover Time of 18 µs (typical)Three Integrated Load Switches AutomaticallyChoose Highest InputIntegrated 3.6-V Fixed LDOSwitched and Always on LDO OutputsµQFN package 1.5 mm × 1.5 mmInput Voltage Range: 2.5 V to 12 VLow ON-Resistance (rON)rON= 2.4 Ω at VIN= 5.0 VrON= 2.6 Ω at VIN= 4.2 V50-mA Maximum Continuous CurrentLow Threshold Control Input (EN)Switchover Time of 18 µs (typical)

Description

The TPS22933 device is a small, low rON, triple-input power multiplexer with auto-input selection and a low-dropout linear regulator. The device contains three P-channel MOSFETs that can operate over an input voltage range of 2.5 V to 12 V. The TPS22933 automatically selects the highest level (from BAT, USB, and DC_IN) and enables that input to source the LDO. LOUT is an always-on output from the LDO. The Enable function (EN pin) allows VOUT to be switched on or off, enables a quick discharge resistor, and is capable of interfacing directly with low-voltage control signals. The TPS22933 is available in a small, space-saving 8-pin µQFN package and is characterized for operation over the free-air temperature range of –40°C to 85°C. The TPS22933 device is a small, low rON, triple-input power multiplexer with auto-input selection and a low-dropout linear regulator. The device contains three P-channel MOSFETs that can operate over an input voltage range of 2.5 V to 12 V. The TPS22933 automatically selects the highest level (from BAT, USB, and DC_IN) and enables that input to source the LDO. LOUT is an always-on output from the LDO. The Enable function (EN pin) allows VOUT to be switched on or off, enables a quick discharge resistor, and is capable of interfacing directly with low-voltage control signals. The TPS22933 is available in a small, space-saving 8-pin µQFN package and is characterized for operation over the free-air temperature range of –40°C to 85°C.
