68739 Series

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Material	Insulation Height	Insulation Height	Contact Finish - Mating	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Number of Rows	Mounting Type	Termination	Contact Length - Mating [x]	Contact Length - Mating	Connector Type	Number of Positions	Contact Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Shape	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post

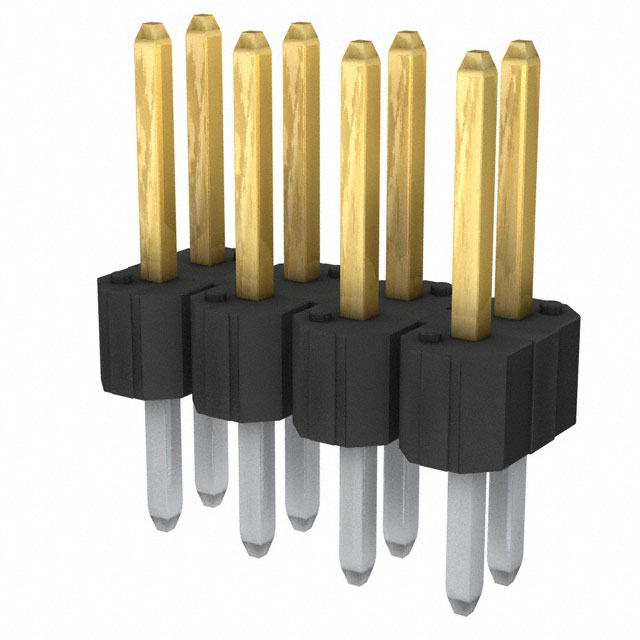

Amphenol ICC (FCI) 68739-108H	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	8	Male Pin	Push-Pull	30 Áin	0.76 Ám	All	Square	0.156 in	3.96 mm	UL94 V-0

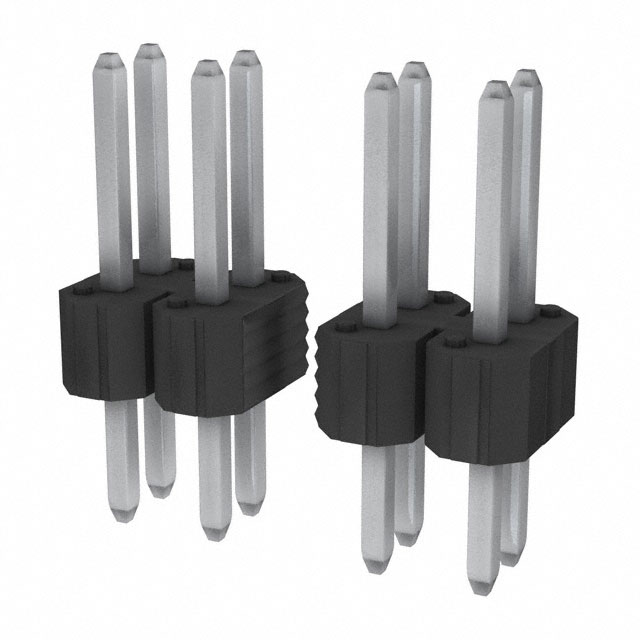

Amphenol ICC (FCI) 68739-414HLF	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm		Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	14	Male Pin	Push-Pull	100 çin	2.54 çm	All	Square	0.156 in	3.96 mm	UL94 V-0	Tin
Amphenol ICC (FCI) 68739-454HLF	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm		Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	54	Male Pin	Push-Pull	100 çin	2.54 çm	All	Square	0.156 in	3.96 mm	UL94 V-0	Tin
Amphenol ICC (FCI) 68739-450HLF	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm		Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	50	Male Pin	Push-Pull	100 çin	2.54 çm	All	Square	0.156 in	3.96 mm	UL94 V-0	Tin
Amphenol ICC (FCI) 68739-106HLF	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	6	Male Pin	Push-Pull	30 Áin	0.76 Ám	All	Square	0.156 in	3.96 mm	UL94 V-0
Amphenol ICC (FCI) 68739-440HLF	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm		Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	40	Male Pin	Push-Pull	100 çin	2.54 çm	All	Square	0.156 in	3.96 mm	UL94 V-0	Tin
Amphenol ICC (FCI) 68739-272H			Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in		2	Through Hole	Solder	0.23 in	5.84 mm	Header	72	Male Pin	Push-Pull	15 µin	0.38 µm	All	Square	0.156 in	3.96 mm	UL94 V-0
Amphenol ICC (FCI) 68739-438HLF	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm		Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	38	Male Pin	Push-Pull	100 çin	2.54 çm	All	Square	0.156 in	3.96 mm	UL94 V-0	Tin
Amphenol ICC (FCI) 68739-142HLF	-65 ░C	130 °C	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	12.34 mm	0.486 in	3 A	2	Through Hole	Solder	0.23 in	5.84 mm	Header	42	Male Pin	Push-Pull	30 Áin	0.76 Ám	All	Square	0.156 in	3.96 mm	UL94 V-0
Amphenol ICC (FCI) 68739-202H			Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2.54 mm	0.1 in			12.34 mm	0.486 in		2	Through Hole	Solder	0.23 in	5.84 mm	Header	2	Male Pin	Push-Pull	15 µin	0.38 µm	All	Square	0.156 in	3.96 mm	UL94 V-0
