005029 Series

Manufacturer: Molex

Catalog

CONN RCPT 5P 0.156 TIN EDGE MNT

Part	Applications	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Connector Type	Termination	Features	Contact Finish - Post	Current Rating (Amps)	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Mounting Type	Voltage Rating	Number of Positions Loaded	Style	Contact Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Shrouding	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Finish	Overall Contact Length	Overall Contact Length	Note	Color	Pitch	Pitch	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating [x]	Contact Length - Mating [x]
Molex 0050290039	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	1.52 µm	60 µin	Square	Nylon Polyamide (PA)	60 µin	1.52 Ám	UL94 V-2	Locking Ramp	Receptacle	Solder	Board Hooks	Tin	5 A	1	5	-40 C	105 ░C	0.308 "	7.82 mm	3.96 mm	0.156 in	3.68 mm	0.145 in	White	Board Edge Right Angle Through Hole	600 V	All	Board to Board Cable	Female Socket
Molex 0050291623	Automotive General Purpose Medical Telecommunications		2.54 µm	100 µin	Square	Glass Filled Nylon Polyamide (PA)	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Header Breakaway	Kinked Pin Solder		Tin		1	5					2.54 mm	0.1 "			Black	Right Angle Through Hole		All	Board to Board Cable	Male Pin	0.135 in	3.43 mm	Unshrouded	0.098 "	2.5 mm	0.244 in	6.2 mm	Gold

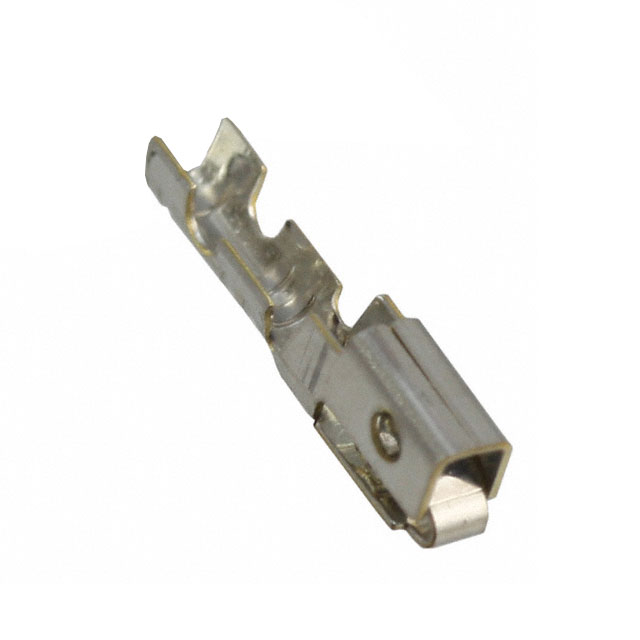

Molex 0050291757																																								Crimp	22 AWG	30 AWG	2.54 µm	100 µin	Non-Gendered	Tin
Molex 0050290042	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	1.52 µm	60 µin	Square	Nylon Polyamide (PA)	60 µin	1.52 Ám	UL94 V-2	Locking Ramp	Receptacle	Solder	Board Hooks	Tin	5 A	1	11	-40 C	105 ░C	0.308 "	7.82 mm	3.96 mm	0.156 in	3.68 mm	0.145 in	White	Board Edge Right Angle Through Hole	600 V	All	Board to Board Cable	Female Socket
Molex 0050290057	Automotive General Purpose Medical Telecommunications	Brass	1.52 µm	60 µin	Square	Nylon Polyamide (PA)	60 µin	1.52 Ám	UL94 V-0	Friction Lock	Header	Solder		Tin		1	8					2.54 mm	0.1 "			White	Through Hole		All	Board to Board Cable	Male Pin	0.289 in	7.34 mm	Shrouded - 1 Wall	0.322 in	8.18 mm	0.286 in	7.26 mm									17.78 mm	0.7 in
Molex 0050291742	Automotive General Purpose Medical Telecommunications	Brass	2.54 µm	100 µin	Square	Nylon Polyamide (PA)	20 µin	0.51 µm	UL94 V-0	Friction Lock	Header	Solder		Tin		1	10					2.54 mm	0.1 "			White	Through Hole		All	Board to Board Cable	Male Pin	0.289 in	7.34 mm	Shrouded - 1 Wall	0.322 in	8.18 mm	0.286 in	7.26 mm	Gold								17.78 mm	0.7 in
Molex 0050291878																																								Crimp	22 AWG	26 AWG	2.54 µm	100 µin	Non-Gendered	Tin

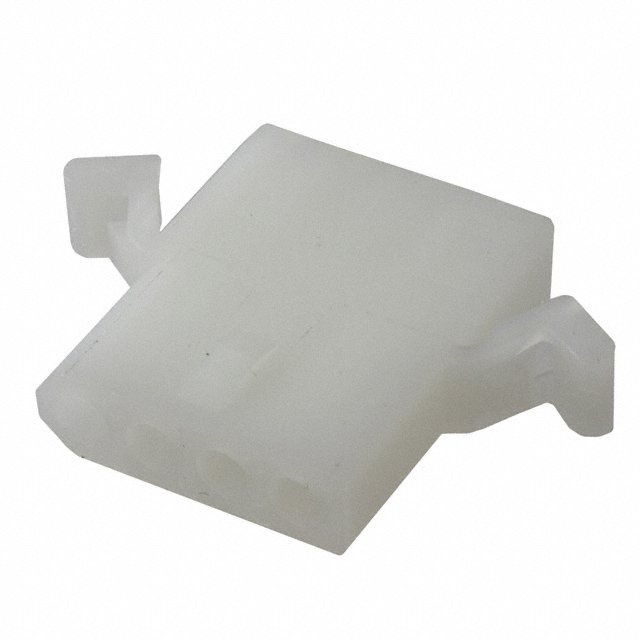

Molex 0050291758						Nylon 6/6 Polyamide (PA66)				Detent Lock	Receptacle					1	4	-40 C	105 ░C								Panel Mount				Male or Female									Crimp									Contacts Not Included	Natural	3.68 mm	0.145 in
Molex 0050291559						Nylon Polyamide (PA)				Locking Ramp	Receptacle		Polarizing Key			1	4										Free Hanging (In-Line)				Non-Gendered									Crimp									Contacts Not Included	Black	2.54 mm	0.1 "
Molex 0050291620	Automotive General Purpose Medical Telecommunications		2.54 µm	100 µin	Square	Glass Filled Nylon Polyamide (PA)	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Header Breakaway	Solder		Tin		1	8					2.54 mm	0.1 "	3.18 mm	0.125 in	Black	Through Hole		All	Board to Board Cable	Male Pin			Unshrouded					Gold								11.56 mm	0.455 in					0.09 in	2.29 mm	0.24 in	6.1 mm
