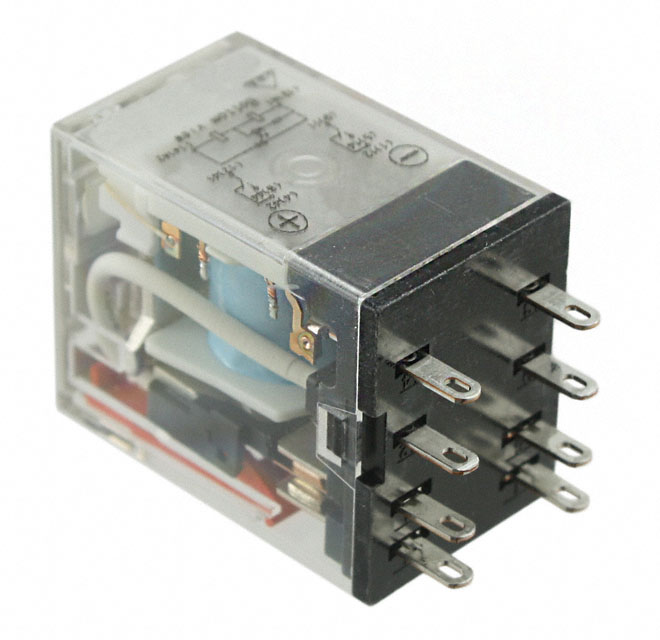

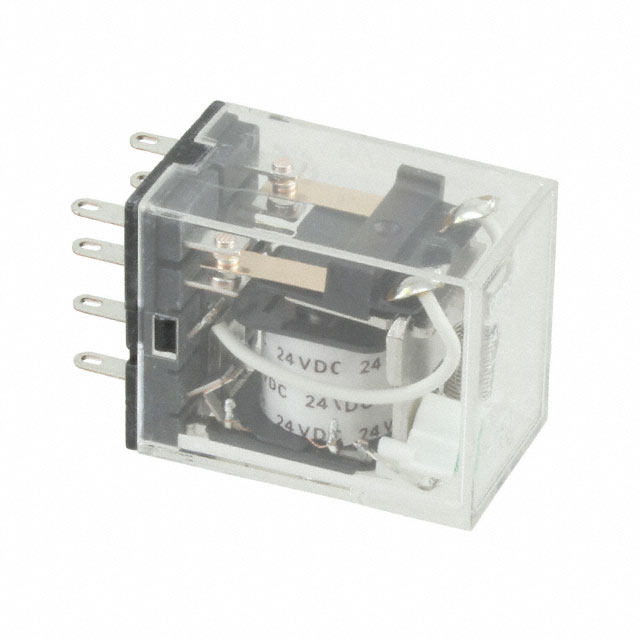

MY2N-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 110V
| Part | Switching Voltage | Operate Time | Must Release Voltage | Features | Relay Type | Contact Material | Approval Agency | Coil Voltage | Contact Rating (Current) | Termination Style | Release Time | Contact Form | Coil Current | Must Operate Voltage | Coil Resistance | Load - Max Switching | Mounting Type | Coil Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 20 ms | 11 VDC | Diode Lighted Indicator | General Purpose | Silver (Ag) | CE CSA UR VDE | 110 VDC | 5 A | Plug In | 20 ms | DPDT (2 Form C) | 9.6 mA | 88 VDC | 11.44 kOhms | 625 W 1250 VA | Socketable | Non Latching | -55 °C | 60 °C |
 Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 20 ms | 2.4 VDC | Diode Lighted Indicator | General Purpose | Silver (Ag) | CE CSA UR VDE | 24 VDC | 5 A | Plug In | 20 ms | DPDT (2 Form C) | 36.3 mA | 19.2 VDC | 662 Ohms | 625 W 1250 VA | Socketable | Non Latching | -55 °C | 70 °C |
 Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 20 ms | 2.4 VDC | Lighted Indicator | General Purpose | Silver (Ag) | CE CSA UR VDE | 24 VDC | 5 A | Plug In | 20 ms | DPDT (2 Form C) | 36.3 mA | 19.2 VDC | 662 Ohms | 625 W 1250 VA | Socketable | Non Latching | -55 °C | 70 °C |
Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 20 ms | 1.2 VDC | Diode Lighted Indicator | General Purpose | Silver (Ag) | CE CSA UR VDE | 12 VDC | 5 A | Plug In | 20 ms | DPDT (2 Form C) | 72.7 mA | 9.6 VDC | 165 Ohms | 625 W 1250 VA | Socketable | Non Latching | -55 °C | 60 °C |
Omron Electronics Inc-EMC Div | 220 VDC 250 VAC | 20 ms | 4.8 VDC | Diode Lighted Indicator | General Purpose | Silver (Ag) | CE CSA UR VDE | 48 VDC | 7 A | Plug In | 20 ms | DPDT (2 Form C) | 17.6 mA | 38.4 VDC | 2.73 kOhms | 1540 W 1750 VA | Socketable | Non Latching | -55 °C | 60 °C |
 Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 20 ms | 11 VDC | Diode Lighted Indicator | General Purpose | Silver (Ag) | CE CSA UR VDE | 110 VDC | 5 A | Plug In | 20 ms | DPDT (2 Form C) | 9.6 mA | 88 VDC | 11.44 kOhms | 625 W 1250 VA | Socketable | Non Latching | -55 °C | 70 °C |
