02K108 Series
Manufacturer: Rosenberger
Beta
⌘K

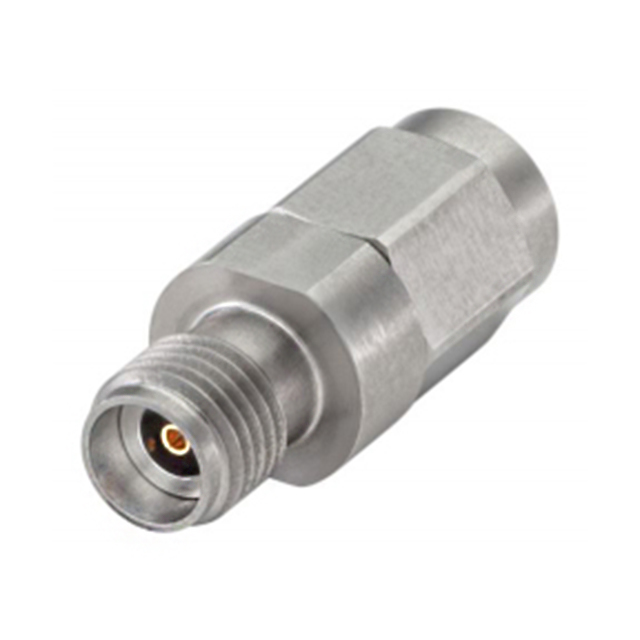

PRECISION 2.92 ADAPTER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Dielectric Material | Center Contact Material | Mating Cycles | Body Material | Center Contact Plating | Adapter Series [Max] | Adapter Series [Min] | Convert To (Adapter End) | Mounting Type | Frequency - Max [Max] | Adapter Type | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Conversion Type | Impedance | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | 0.32 dB | Polystyrene (PS) | Beryllium Copper | 500 | Stainless Steel | Gold | RPC-1.85 | RPC-2.92 | 1.85mm Plug Male Pin | Free Hanging (In-Line) | 40 GHz | Plug to Jack | OS-2.9 | Jack Female Socket | 2.92 mm | Between Series | 50 Ohms | Straight |
