SCS240 Series

650V, 40A, 3-pin THD, Silicon-carbide (SiC) SBD for Automotive

Catalog

650V, 40A, 3-pin THD, Silicon-carbide (SiC) SBD for Automotive

Part	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Speed	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Package / Case	Technology	Operating Temperature - Junction [Max]	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Qualification	Grade

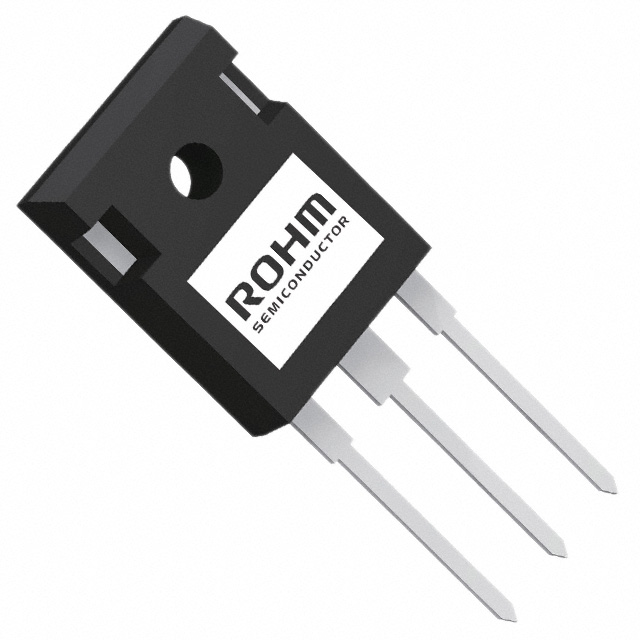

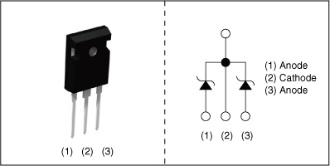

Rohm Semiconductor SCS240KE2HRC11	1 Pair Common Cathode	20 A	500 mA	400 µA	0 ns	1.6 V	Through Hole	TO-247-3	SiC (Silicon Carbide) Schottky	175 ░C	TO-247	1.2 kV
Rohm Semiconductor SCS240KE2GC11	1 Pair Common Cathode	20 A	500 mA	400 µA	0 ns	1.6 V	Through Hole	TO-247-3	SiC (Silicon Carbide) Schottky		TO-247N	1.2 kV	175 °C
Rohm Semiconductor SCS240AE2HRC11	1 Pair Common Cathode	20 A	500 mA	400 µA	0 ns	1.55 V	Through Hole	TO-247-3	SiC (Silicon Carbide) Schottky		TO-247N	650 V	175 °C
Rohm Semiconductor SCS240AE2GC11	1 Pair Common Cathode	20 A	500 mA	400 µA	0 ns	1.55 V	Through Hole	TO-247-3	SiC (Silicon Carbide) Schottky		TO-247N	650 V	175 °C
Rohm Semiconductor SCS240AE2HRC	1 Pair Common Cathode	15 A	500 mA	300 µA			Through Hole	TO-247-3	SiC (Silicon Carbide) Schottky	175 ░C	TO-247	650 V		1.55 V	AEC-Q101	Automotive
Rohm Semiconductor SCS240KE2C	1 Pair Common Cathode	20 A	500 mA	400 µA	0 ns		Through Hole	TO-247-3	SiC (Silicon Carbide) Schottky	175 ░C	TO-247	1.2 kV

650V, 40A, 3-pin THD, Silicon-carbide (SiC) SBD for Automotive

Switching loss reduced, enabling high-speed switching . (2-pin package)
