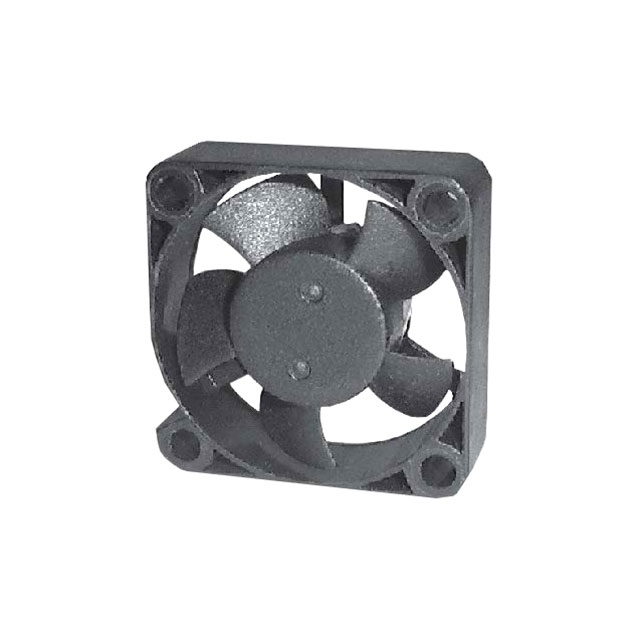

FAD1-03010 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 30X10MM 12VDC WIRE

Part	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Weight	Weight	Static Pressure	Static Pressure	RPM	Power (Watts)	Termination	Noise	Approval Agency	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Fan Type
Qualtek FAD1-03010CBLW11	0.084 mł/min	3 CFM	Plastic	50 mA	Plastic	10.8 VDC	13.2 VDC	30 mm	30 mm	10 mm	8.16 g	0.018 lb	28.7 Pa	0.115 in H2O	8000 RPM	600 mW	2 Wire Leads	26 dB	CE cURus TUV	12 VDC	70 °C	-10 °C	Ball	Tubeaxial
Qualtek FAD1-03010CHAW11	0.061 m³/min	2.2 CFM	Plastic	0.035 A	Plastic	10.8 VDC	13.2 VDC	30 mm	30 mm	10 mm	8.16 g	0.018 lb	17 Pa	0.068 in H2O	6000 RPM	420 mW	2 Wire Leads	19 dB(A)	CE cURus TUV	12 VDC	70 °C	-10 °C	Hydrodynamic	Tubeaxial
Qualtek FAD1-03010CHMW11	0.092 m³/min	3.3 CFM	Plastic	45 mA	Plastic	10.8 VDC	13.2 VDC	30 mm	30 mm	10 mm	8.16 g	0.018 lb	37 Pa	0.148 in H2O	9000 RPM	0.54 W	2 Wire Leads	30 dB	CE cURus TUV	12 VDC	70 °C	-10 °C	Hydrodynamic	Tubeaxial
Qualtek FAD1-03010BBAW11	0.061 m³/min	2.2 CFM	Plastic	0.45 A	Plastic	4.5 V	5.5 V	30 mm	30 mm	10 mm	8.16 g	0.018 lb	17 Pa	0.068 in H2O	6000 RPM	225 mW	2 Wire Leads	19 dB(A)	CE cURus TUV	5 V	70 °C	-10 °C	Ball	Tubeaxial
Qualtek FAD1-03010CHHW11	0.112 m³/min	4 CFM	Plastic	0.053 A	Plastic	10.8 VDC	13.2 VDC	30 mm	30 mm	10 mm	8.16 g	0.018 lb	49.8 Pa	0.2 in H2O	10500 RPM	640 mW	2 Wire Leads	34 dB(A)	CE cURus TUV	12 VDC	70 °C	-10 °C	Hydrodynamic	Tubeaxial
Qualtek FAD1-03010CBAW11	0.061 m³/min	2.2 CFM	Plastic	0.035 A	Plastic	10.8 VDC	13.2 VDC	30 mm	30 mm	10 mm	8.16 g	0.018 lb	17 Pa	0.068 in H2O	6000 RPM	420 mW	2 Wire Leads	19 dB(A)	CE cURus TUV	12 VDC	70 °C	-10 °C	Ball	Tubeaxial
Qualtek FAD1-03010BHHW11	0.112 m³/min	4 CFM	Plastic	0.095 A	Plastic	4.5 V	5.5 V	30 mm	30 mm	10 mm	8.16 g	0.018 lb	49.8 Pa	0.2 in H2O	10500 RPM		2 Wire Leads	34 dB(A)	CE cURus TUV	5 V	70 °C	-10 °C	Hydrodynamic	Tubeaxial
