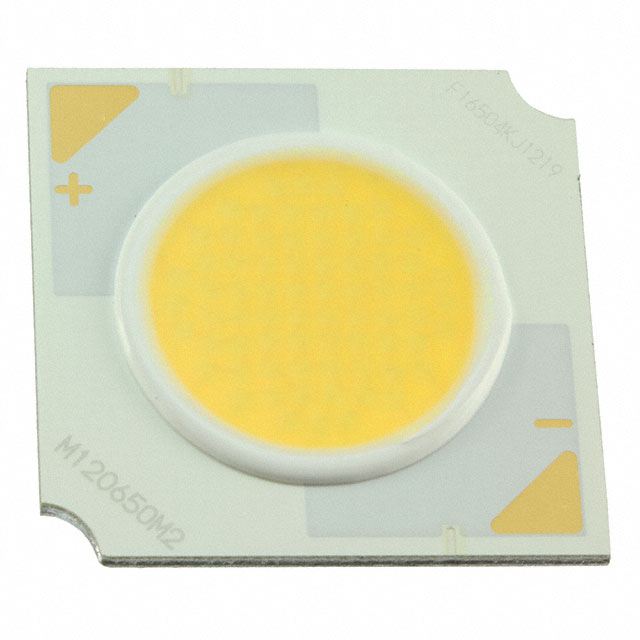

CLU721 Series

Catalog

LED COB CLU721 COOL WH SQ 5000K

Part	CRI (Color Rendering Index)	Current - Max [Max]	Configuration	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Lens Type	Color	CCT (K)	Type	Lumens/Watt @ Current - Test	Current - Test	Light Emitting Surface (LES) [diameter]
Citizen Finedevice Co Ltd CLU721-1206C4-503M2K1	80	1.38 A	Square	4836 lm	19 mm	19 mm	37.6 V	85 °C	Flat	Cool White	5000 K	Chip On Board (COB)	122 lm/W	1.05 A	11 mm
Citizen Finedevice Co Ltd CLU721-1206C4-353H5K2	90	1.38 A	Square	3845 lm	19 mm	19 mm	37.6 V	85 °C	Flat	Warm White	3500 K	Chip On Board (COB)	97 lm/W	1.05 A	11 mm
Citizen Finedevice Co Ltd CLU721-1206C4-403M2K1	80	1.38 A	Square	4750 lm	19 mm	19 mm	37.6 V	85 °C	Flat	Neutral White	4000 K	Chip On Board (COB)	120 lm/W	1.05 A	11 mm
Citizen Finedevice Co Ltd CLU721-1206C4-273H5K2	90	1.38 A	Square	3560 lm	19 mm	19 mm	37.6 V	85 °C	Flat	Warm White	2700 K	Chip On Board (COB)	90 lm/W	1.05 A	11 mm
