KM01.1105 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

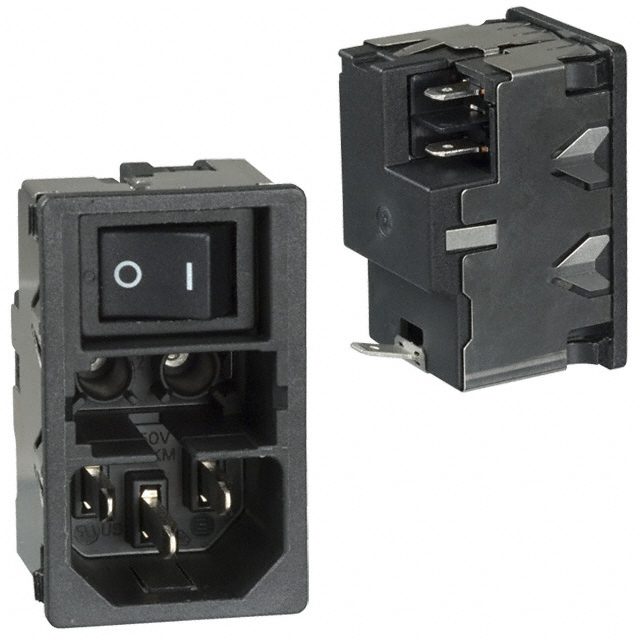

KM, MOUNTING:QUICK CONNECT TERMINALS 4.8 X 0.8 MM, FUSE HOLDER: 2-POLE, ROCKER SWITCH, NON-ILLUMINATED, 2-POLE, WITH EMC-SHIELD
| Part | Connector Style | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Approval Agency | Termination | Termination | Termination | Accomodates a Fuse | Features | Fuse Holder, Drawer | Connector Type | Current Rating - Appliance Inlet | Mounting Type | Ingress Protection | Filter Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Switch Features | Number of Positions | Voltage Rating - Appliance Inlet | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | IEC 320-C14 IEC 320-C18 | 2.5 mm | 0.039 in | 0.098 in | 1 mm | CCC cULus ENEC | 0.189 " | 4.8 mm | Quick Connect | Shielded Terminating Cover | Fuse Holder | Receptacle Male Blades - Module | 10 A | Panel Mount Snap-In | IP40 | Unfiltered - Commercial | 28.8 mm | 47.8 mm | Switch On-Off | 2 | 250 VAC | UL94 V-0 |
