C146 11R016 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

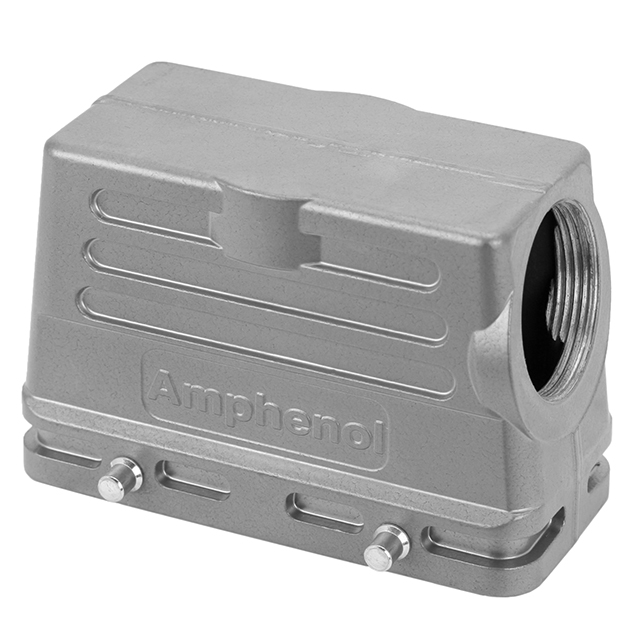

CONN HOOD SIDE ENTRY SZE16 M40
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Housing Finish | Size | Style | Housing Material | Connector Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Ingress Protection | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | 125 °C | -40 C | Gray | EMC Coating | E16 | Side Entry | Aluminum Die Cast | Hood | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom |
