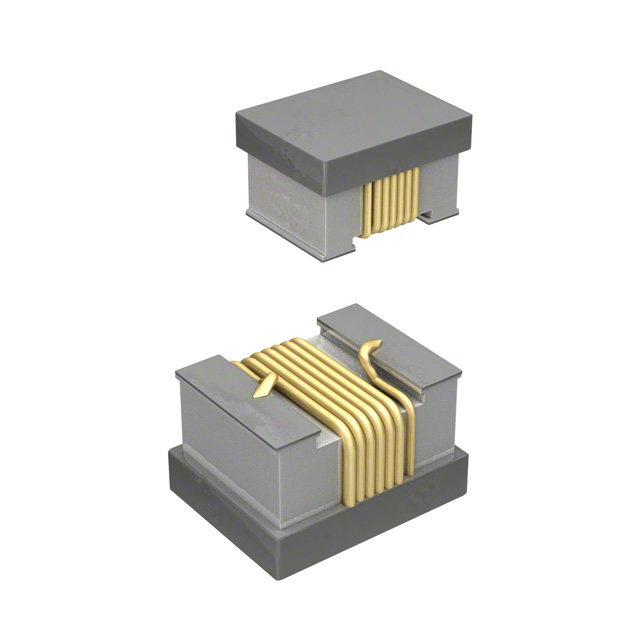

CW252016 Series

Catalog

FIXED IND 100NH 500MA 560MOHM SM

Part	Tolerance	Frequency - Self Resonant	Package / Case	Package / Case	Inductance	Mounting Type	Supplier Device Package	Supplier Device Package	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Current Rating (Amps)	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Material - Core	Q @ Freq	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CW252016-R10J	5 %	1 GHz	2520 Metric	1008	100 nH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	0.5 A	100 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	560 mOhm	Ceramic	60 350 MHz
Bourns Inc. CW252016-27NJ	5 %	1.6 GHz	2520 Metric	1008	27 nH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	600 mA	100 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm		Ceramic	55 350 MHz	130 mOhm
Bourns Inc. CW252016-R82G	2 %	350 MHz	2520 Metric	1008	820 nH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	360 mA	25 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	2.3 Ohm	Ceramic	45 100 MHz
Bourns Inc. CW252016-3R3J	5 %	55 MHz	2520 Metric	1008	3.3 µH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	0.185 A	7.9 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	3.4 Ohm	Ferrite			22	7.9 MHz
Bourns Inc. CW252016-47NK	10 %	1.5 GHz	2520 Metric	1008	47 nH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	600 mA	100 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	160 mOhm	Ceramic	60 350 MHz
Bourns Inc. CW252016-2R2G	2 %	160 MHz	2520 Metric	1008	2.2 µH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	0.25 A	7.9 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	2.8 Ohm	Ferrite			25	7.9 MHz
Bourns Inc. CW252016-10NK	10 %	4.1 GHz	2520 Metric	1008	10 nH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	600 mA	100 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	80 mOhm	Ceramic			50		500 MHz
Bourns Inc. CW252016-R18G	2 %	750 MHz	2520 Metric	1008	180 nH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	0.5 A	25 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm		Ceramic	45 100 MHz	770 mOhm
Bourns Inc. CW252016-33NJ	5 %	1.6 GHz	2520 Metric	1008	33 nH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	600 mA	100 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	160 mOhm	Ceramic	60 350 MHz
Bourns Inc. CW252016-R68J	5 %	375 MHz	2520 Metric	1008	0.68 µH	Surface Mount	2520 Metric	1008	Unshielded	1.8 mm	0.071 in	Drum Core Wirewound	400 mA	25 MHz	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	1.55 Ohm	Ceramic	45 100 MHz
