62.32.9 Series

Catalog

RELAY GEN PURPOSE DPDT 16A 24V

Part	Coil Resistance	Operate Time	Termination Style	Termination Style	Contact Material	Load - Max Switching	Relay Type	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Release Time	Mounting Type	Approval Agency	Coil Type	Contact Rating (Current)	Coil Voltage	Contact Form	Features	Must Release Voltage	Coil Current
Finder Relays, Inc. 62.32.9.024.0074	445 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	19.2 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	24 VDC	DPDT (2 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	4.8 VDC	54 mA
Finder Relays, Inc. 62.32.9.012.0040	110 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	9.6 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	12 VDC	DPDT (2 Form C)	Mechanical Indicator Test Button	2.4 VDC	109 mA
Finder Relays, Inc. 62.32.9.012.0000	110 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	9.6 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	12 VDC	DPDT (2 Form C)		2.4 VDC	109 mA
Finder Relays, Inc. 62.32.9.125.0074	12 kOhms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	100 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	125 VDC	DPDT (2 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	25 VDC	10.4 mA
Finder Relays, Inc. 62.32.9.024.0000	445 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	19.2 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	24 VDC	DPDT (2 Form C)		4.8 VDC	54 mA

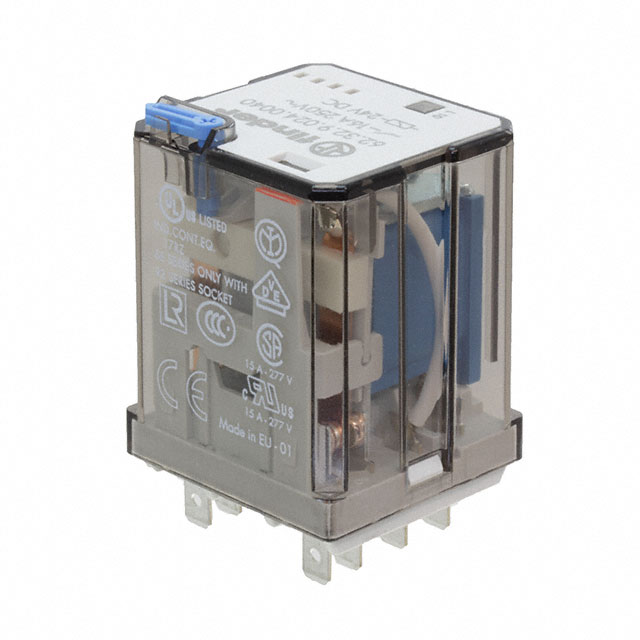

Finder Relays, Inc. 62.32.9.024.0040	445 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	19.2 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	24 VDC	DPDT (2 Form C)	Mechanical Indicator Test Button	4.8 VDC	54 mA
Finder Relays, Inc. 62.32.9.024.0060	445 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	19.2 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	24 VDC	DPDT (2 Form C)	Diode Lighted Indicator	4.8 VDC	54 mA
Finder Relays, Inc. 62.32.9.024.0360	192 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	20.4 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	24 VDC	DPST-NO (2 Form A)	Diode Lighted Indicator	4.8 VDC	125 mA
Finder Relays, Inc. 62.32.9.024.4360	192 Ohms	11 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Tin Oxide (AgSnO)	6400 VA	General Purpose	400 VAC	70 °C	-40 C	20.4 VDC	4 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	24 VDC	DPST-NO (2 Form A)	Diode Lighted Indicator	4.8 VDC	125 mA
Finder Relays, Inc. 62.32.9.024.0300	192 Ohms	15 ms	0.187 in 4.7 mm	Plug In Quick Connect	Silver Cadmium Oxide (AgCdO)	6400 VA	General Purpose	400 VAC	50 °C	-40 C	20.4 VDC	3 ms	Socketable	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Non Latching	16 A	24 VDC	DPST-NO (2 Form A)		4.8 VDC	125 mA
