GBU10 Series

Catalog

Part	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Diode Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Peak Reverse (Max) [Max]

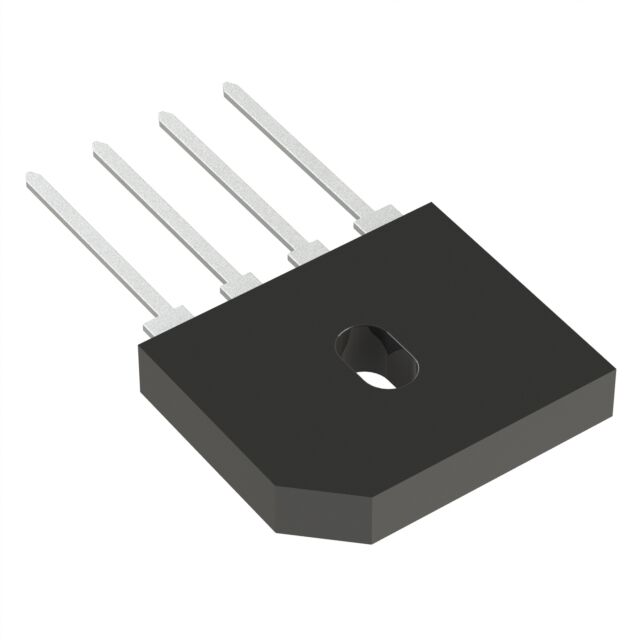

Diotec Semiconductor GBU10K	7 A	1.1 V	5 µA	800 V	GBU	1 V 5 A	Through Hole	Single Phase	4-SIP GBU	-50 °C	150 °C	Standard
Diotec Semiconductor GBU10B	7 A	1.1 V	5 µA		GBU		Through Hole	Single Phase	4-SIP GBU	-50 °C	150 °C	Standard	100 V
Diotec Semiconductor GBU10M	7 A	1.1 V	5 µA		GBU		Through Hole	Single Phase	4-SIP GBU	-50 °C	150 °C	Standard	1 kV
Diotec Semiconductor GBU10A-T	7 A	1.1 V	5 µA		GBU		Through Hole	Single Phase	4-SIP GBU	-50 °C	150 °C	Standard	50 V
