05S106 Series
Manufacturer: Rosenberger
Beta
⌘K

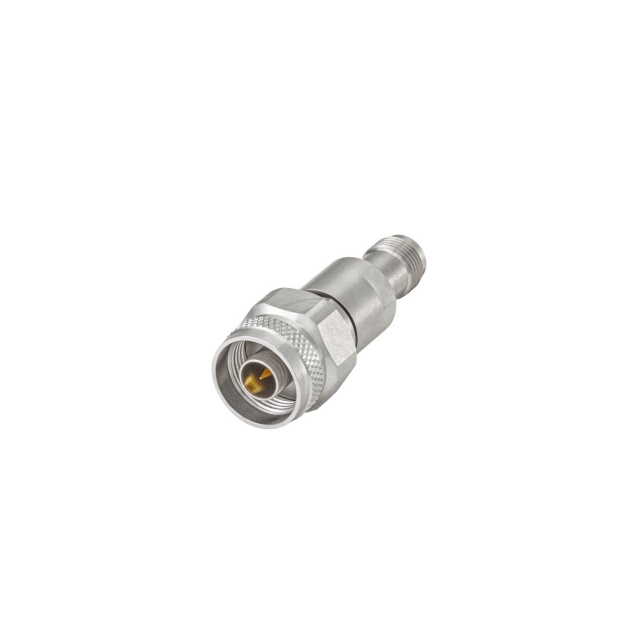

PRECISION N TYPE ADAPTER
| Part | Mating Cycles | Dielectric Material | Center Contact Material | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Adapter Series | Adapter Type | Conversion Type | Convert To (Adapter End) | Convert From (Adapter End) | Impedance | Style | Center Contact Plating | Mounting Type | Frequency - Max [Max] | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | 0.42 dB | 85 °C | -40 C | Stainless Steel | RJC-N to RJC-TNC | Plug to Jack | Between Series | Female Socket TNC Jack | N Plug Male Pin | 50 Ohms | Straight | Gold | Free Hanging (In-Line) | 18 GHz | |
 Rosenberger | 500 | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | 0.42 dB | 85 °C | -40 C | Stainless Steel | RJC-N to RJC-TNC | Plug to Plug | Between Series | TNC Plug Male Pin | N Plug Male Pin | 50 Ohms | Straight | Gold | Free Hanging (In-Line) | 18 GHz | Male to Male |
