2248 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, DOUBLE ROW, 32 PIN,

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish - Post	Connector Type	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions
Oupiin 2248-A2X16G00DPU	Phosphor Bronze	Square	Nylon 4/6 Polyamide (PA46)	Flash	Gold	Socket	Gold	2.15 mm	0.085 in	Surface Mount	UL94 V-0	All	Flash	0.05 in	1.27 mm	Board Guide	Solder	-40 C	105 ░C	Female Socket	2	1.27 mm	0.05 in	Push-Pull
Oupiin 2248-A2X13G00DNT-M	Phosphor Bronze	Square	Nylon 4/6 Polyamide (PA46)	Flash	Gold	Socket	Gold	2.15 mm	0.085 in	Surface Mount	UL94 V-0	All	Flash	0.05 in	1.27 mm	Board Guide Pick and Place	Solder	-40 C	105 ░C	Female Socket	2	1.27 mm	0.05 in	Push-Pull	26

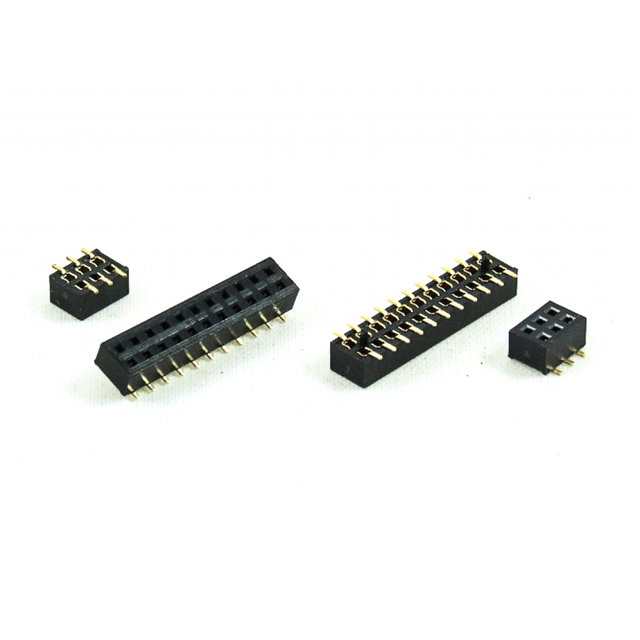

Oupiin 2248-A2X05G00DPU	Phosphor Bronze	Square	Nylon 4/6 Polyamide (PA46)	Flash	Gold	Socket	Gold	2.15 mm	0.085 in	Surface Mount	UL94 V-0	All	Flash	0.05 in	1.27 mm	Board Guide	Solder	-40 C	105 ░C	Female Socket	2	1.27 mm	0.05 in	Push-Pull	10
Oupiin 2248-A2X10G00DPU	Phosphor Bronze	Square	Nylon 4/6 Polyamide (PA46)	Flash	Gold	Socket	Gold	2.15 mm	0.085 in	Surface Mount	UL94 V-0	All	Flash	0.05 in	1.27 mm	Board Guide	Solder	-40 C	105 ░C	Female Socket	2	1.27 mm	0.05 in	Push-Pull	20
Oupiin 2248-A2X15G00DPU	Phosphor Bronze	Square	Nylon 4/6 Polyamide (PA46)	Flash	Gold	Socket	Gold	2.15 mm	0.085 in	Surface Mount	UL94 V-0	All	Flash	0.05 in	1.27 mm	Board Guide	Solder	-40 C	105 ░C	Female Socket	2	1.27 mm	0.05 in	Push-Pull	30
Oupiin 2248-A2X30G00DNU-M	Phosphor Bronze	Square	Nylon 4/6 Polyamide (PA46)	Flash	Gold	Socket	Gold	2.15 mm	0.085 in	Surface Mount	UL94 V-0	All	Flash	0.05 in	1.27 mm	Board Guide Pick and Place	Solder	-40 C	105 ░C	Female Socket	2	1.27 mm	0.05 in	Push-Pull	60
