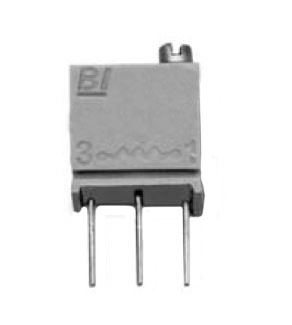

64YR Series

Catalog

TRIMMER 500 OHM 0.25W PC PIN TOP

Part	Adjustment Type	Power (Watts)	Power (Watts)	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Resistive Material	Termination Style	Number of Turns	Mounting Type	Resistance
TT Electronics/BI 64YR500LF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	0.5 kOhms
TT Electronics/BI 64YR5KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	5 kOhms
TT Electronics/BI 64YR1KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	1000 Ohms
TT Electronics/BI 64YR25KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	25 kOhms
TT Electronics/BI 64YR200KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	200000 Ohms
TT Electronics/BI 64YR500KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole
TT Electronics/BI 64YR100KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	100 kOhms

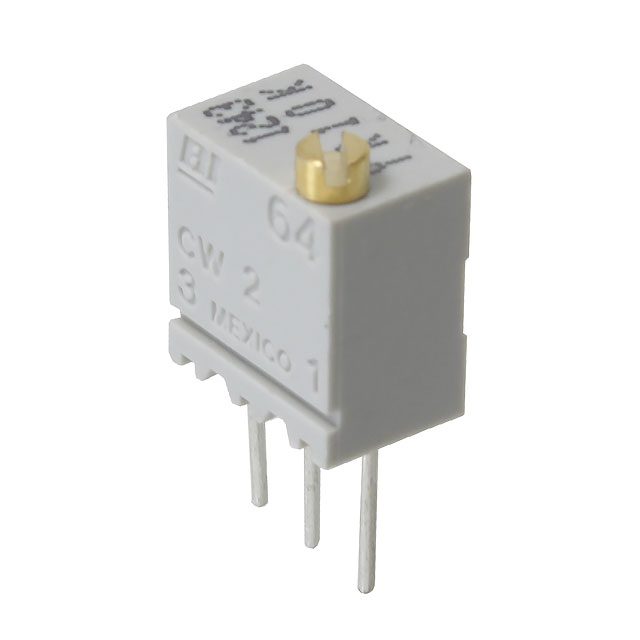

TT Electronics/BI 64YR10KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	10000 Ohms
TT Electronics/BI 64YR250KLF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	250000 Ohms
TT Electronics/BI 64YR10LF	Top Adjustment	0.25 W	0.25 W	100 ppm/°C	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	Cermet	PC Pins	12	Through Hole	10 Ohms
