3RT2038 Series

Manufacturer: Siemens

Catalog

Catalog

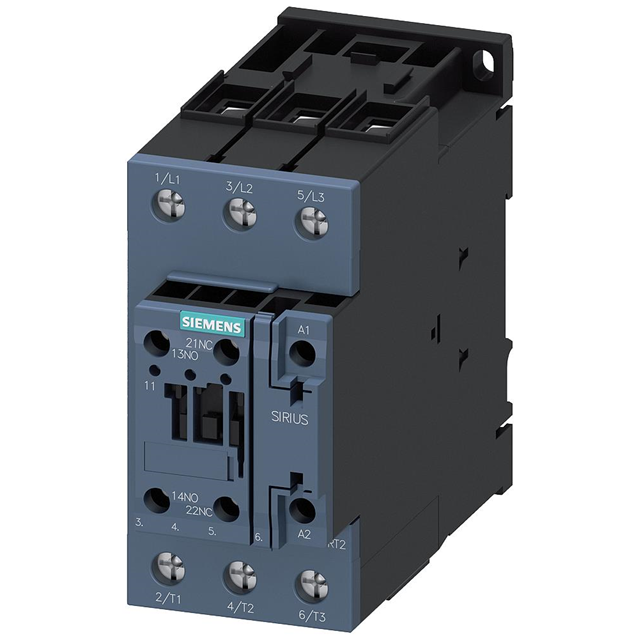

CONTACTOR S2 65A 48VAC SCREW 1NO

...

Part	Operate Time	Release Time	Coil Power	Switching Voltage [Max]	Coil Voltage	Mounting Type	Must Operate Voltage	Contact Form	Features	Contact Rating (Current)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage [Min]	Coil Voltage [Max]
Siemens 3RT20381AH20	80 ms	18 ms	188 VA	690 VAC	48 VAC	Chassis Mount DIN Rail	40.8 VAC	3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-25 °C	60 °C
Siemens 3RT20383AF00	80 ms	18 ms	190 VA	690 VAC	110 VAC/DC	Chassis Mount DIN Rail	88 VAC/DC	3PST-NO (3 Form A)	Auxiliary Contacts	90 A	Screw Terminal	-25 °C	60 °C
Siemens 3RT20381NB34	110 ms	55 ms	23 W	690 VAC		Chassis Mount DIN Rail		3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-25 °C	60 °C	20 VAC/DC	33 VAC/DC
Siemens 3RT20381NP34	110 ms	55 ms	23 W	690 VAC		Chassis Mount DIN Rail		3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-25 °C	60 °C	175 VAC/DC	280 VAC/DC
Siemens 3RT20381AK64	80 ms	18 ms	188 VA	690 VAC	120 VAC	Chassis Mount DIN Rail	96 VAC	3PST-NO (3 Form A)	Auxiliary Contacts	90 A	Screw Terminal	-25 °C	60 °C
Siemens 3RT20383SB30	110 ms	55 ms	40 W	690 VAC		Chassis Mount DIN Rail		3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-25 °C	60 °C	21 VAC/DC	33 VAC/DC
Siemens 3RT20381AL24	80 ms	18 ms	188 VA	690 VAC	230 VAC	Chassis Mount DIN Rail	195.5 VAC	3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-25 °C	60 °C
Siemens 3RT20381XF400LA2	110 ms	55 ms	23 W	690 VAC	110 VDC	Chassis Mount DIN Rail	77 VDC	3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-40 C	70 °C
Siemens 3RT20381AM20	80 ms	18 ms	188 VA	690 VAC	208 VAC	Chassis Mount DIN Rail	176.8 VAC	3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-25 °C	60 °C
Siemens 3RT20381AL20	80 ms	18 ms	188 VA	690 VAC	230 VAC	Chassis Mount DIN Rail	195.5 VAC	3PST-NO (3 Form A)	Auxiliary Contacts	80 A	Screw Terminal	-25 °C	60 °C
