AWH 64A Series
Manufacturer: Assmann WSW Components
Beta
⌘K

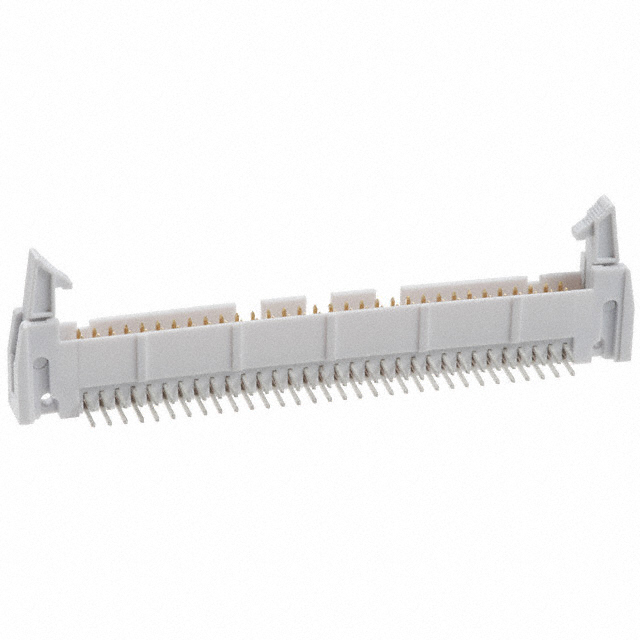

CONN HEADER R/A 64POS 2.54MM
| Part | Style | Number of Positions | Material Flammability Rating | Contact Shape | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Rows [custom] | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Mounting Type | Termination | Current Rating (Amps) | Contact Type | Features | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Contact Finish Thickness - Mating | Shrouding | Contact Finish - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Board to Cable/Wire | 64 | UL94 V-0 | Square | Header | -40 C | 105 ░C | All | 0.1 " | 2.54 mm | Latch Lock/Eject Hooks Long | 2 | Brass | 3.81 mm | 0.15 in | Polybutylene Terephthalate (PBT) Glass Filled | Right Angle Through Hole | Solder | 3 A | Male Pin | Keying Slot | Tin | 0.1 in | 2.54 mm | Gray | Flash | Shrouded - 4 Wall | Gold | 17 mm | 0.669 in |
