TDA858 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC AMP CLASS AB QUAD 87W 37DBS
| Part | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Maximum Output Power (per Channel) | Load Impedance | Channels | Type | Package / Case | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Output Type | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

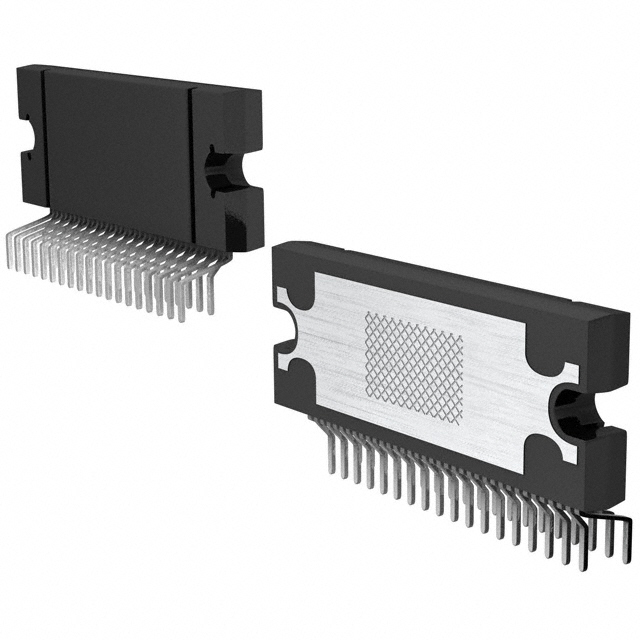

 NXP USA Inc. | 8 V | 18 V | 87 W | 2 Ohm | 4 | Class AB | 37-SSIP Formed Leads | 37-PDBS | 85 °C | -40 °C | 4-Channel (Quad) | I2C Mute Short-Circuit and Thermal Protection Standby | Through Hole |
NXP USA Inc. | 8 V | 18 V | 69 W | 2 Ohm | 4 | Class AB | 37-SSIP Formed Leads | 37-PDBS | 85 °C | -40 °C | 4-Channel (Quad) | I2C Mute Short-Circuit and Thermal Protection Standby | Through Hole |
NXP USA Inc. | 8 V | 18 V | 87 W | 2 Ohm | 4 | Class AB | 37-SSIP Formed Leads | 37-PDBS | 85 °C | -40 °C | 4-Channel (Quad) | I2C Mute Short-Circuit and Thermal Protection Standby | Through Hole |
