65104 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

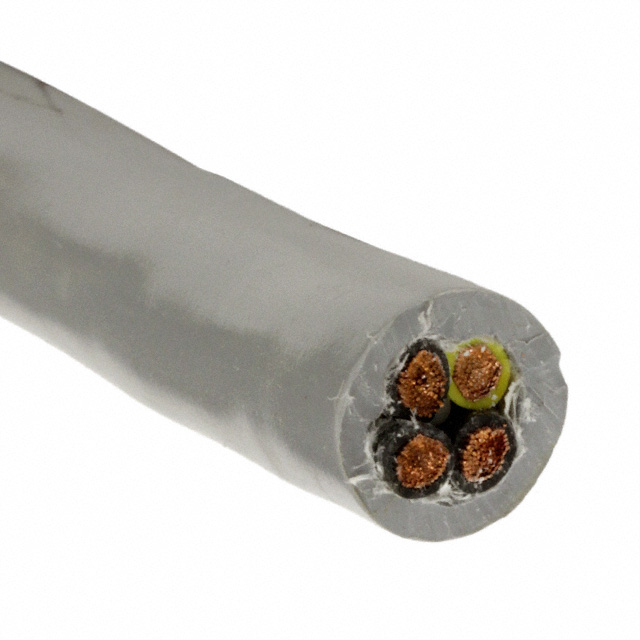

CABLE 4COND 10AWG SLATE 100'
| Part | Wire Gauge | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Features | Ratings | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length [x] | Length [x] | Conductor Insulation | Cable Type | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 10 AWG | Slate | 14.43 mm | 0.568 " | Copper Bare | Biological Compatibility | ISO 10993 UL Style 2587 | 2.134 mm | 0.084 " | 600 V | 105 | 30 | 4 | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) |
ALPHA WIRE | 10 AWG | Slate | 14.43 mm | 0.568 " | Copper Bare | Biological Compatibility | ISO 10993 UL Style 2587 | 2.134 mm | 0.084 " | 600 V | 105 | 30 | 4 | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) |
