M3421 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

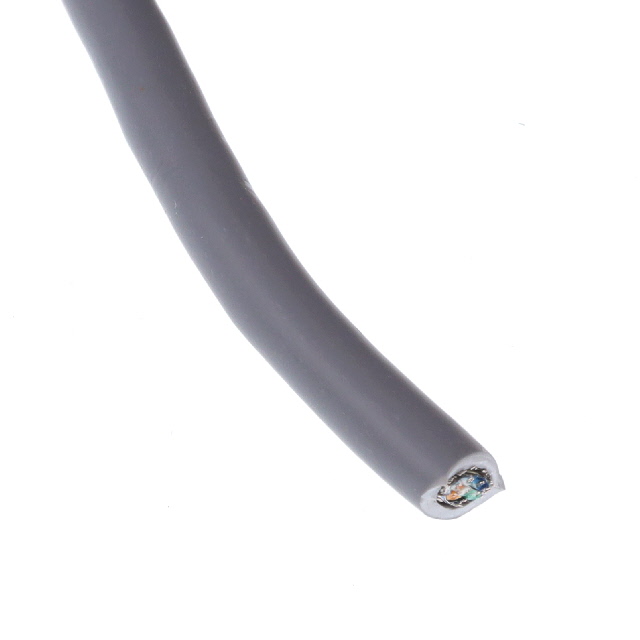

MULTI-PAIR 6COND 24AWG SLATE
| Part | Shield Material | Shield Coverage | Conductor Insulation | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Ratings | Shield Type | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Polypropylene (PP) | 6 | 0.035 in | 0.889 mm | 152.4 m | 500 ft | 80 °C | -20 ░C | Multi-Pair | UL Style 2919 | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | 6.83 mm | 0.269 " | 300 VDC | 7 | 32 AWG | 24 AWG | Slate | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Polypropylene (PP) | 6 | 0.035 in | 0.889 mm | 80 °C | -20 ░C | Multi-Pair | UL Style 2919 | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | 6.83 mm | 0.269 " | 300 VDC | 7 | 32 AWG | 24 AWG | Slate | 100 ft | 30.5 m |
