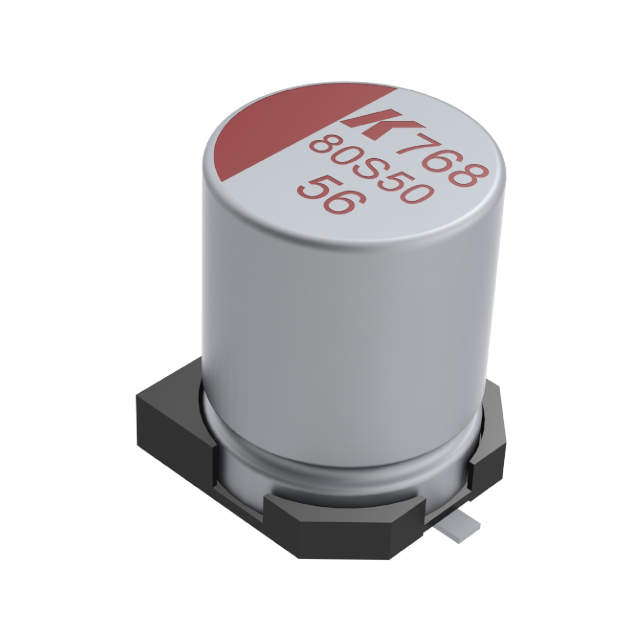

A768KE Series

Manufacturer: KEMET

Catalog

CAP ALUM POLY 68UF 20% 40V SMD

Part	Voltage - Rated	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ripple Current @ Low Frequency	Mounting Type	Lifetime @ Temp.	Package / Case	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	ESR (Equivalent Series Resistance)	Ratings
KEMET A768KE686M1GLAE038	40 V	General Purpose	-55 C	125 °C	1.35 A	68 µF	0.315 in	8 mm	20 %	67.5 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	38 mOhm
KEMET A768KE226M1JLAE054	63 V	General Purpose	-55 C	125 °C	1.175 A	22 µF	0.315 in	8 mm	20 %	58.75 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	54 mOhm
KEMET A768KE826M1VLAE036	35 V	General Purpose	-55 C	125 °C	1.4 A	0.082 mF	0.315 in	8 mm	20 %	70 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	36 mOhms
KEMET A768KE826M1GLAE038	40 V	General Purpose	-55 C	125 °C	1.35 A	0.082 mF	0.315 in	8 mm	20 %	67.5 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	38 mOhm
KEMET A768KE187M1ELAE029	25 VDC	General Purpose	-55 C	125 °C	1.6 A	180 µF	0.315 in	8 mm	20 %	80 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	29 mOhms
KEMET A768KE336M1HLAE042	50 VDC	General Purpose	-55 C	125 °C		33 ÁF	0.315 in	8 mm	20 %	65 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	42 mOhms
KEMET A768KE187M1DLAS029	20 V	Automotive	-55 C	125 °C	1.6 A	180 µF	0.315 in	8 mm	20 %	80 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	29 mOhms	AEC-Q200
KEMET A768KE276M1JLAE054	63 V	General Purpose	-55 C	125 °C	1.175 A	27 µF	0.315 in	8 mm	20 %	58.75 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	54 mOhm
KEMET A768KE396M1HLAE042	50 VDC	General Purpose	-55 C	125 °C		39 µF	0.315 in	8 mm	20 %	65 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	42 mOhms
KEMET A768KE157M1ELAS029	25 VDC	Automotive	-55 C	125 °C	1.6 A	150 µF	0.315 in	8 mm	20 %	80 mA	Surface Mount	2000 Hrs	Radial Can - SMD	Polymer	0.276 in	7 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	29 mOhms	AEC-Q200
