892-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

...

Part	Pitch	Pitch	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination	Card Type	Number of Positions	Gender	Termination Rows [custom]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Contact Finish	Read Out	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Features
EDAC Inc. 892-080-500-212	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder Eyelet(s)	Non Specified - Dual Edge	80	Female	2	40	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-080-520-208	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder	Non Specified - Dual Edge	80	Female	2	40	4-40 Flush Mount Threaded Insert Top Opening			Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-080-559-212	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder	Non Specified - Dual Edge	80	Female	2	40	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole
EDAC Inc. 892-080-555-203	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder	Non Specified - Dual Edge	80	Female	2	40	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Card Extender

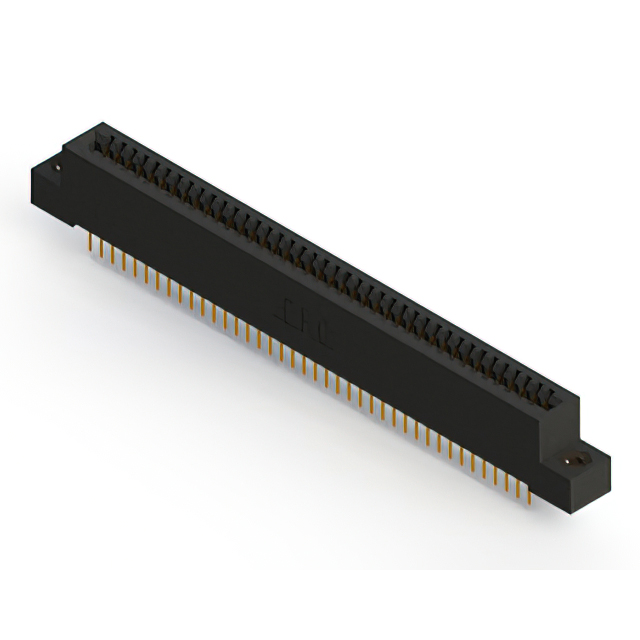

EDAC Inc. 892-080-524-208	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder	Non Specified - Dual Edge	80	Female	2	40	4-40 Flush Mount Threaded Insert Top Opening			Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-080-555-212	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder	Non Specified - Dual Edge	80	Female	2	40	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Card Extender
EDAC Inc. 892-080-558-202	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder	Non Specified - Dual Edge	80	Female	2	40	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole
EDAC Inc. 892-080-560-202	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder	Non Specified - Dual Edge	80	Female	2	40	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Card Extender
EDAC Inc. 892-080-500-203	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Solder Eyelet(s)	Non Specified - Dual Edge	80	Female	2	40	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-080-540-204	0.1 "	2.54 mm	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Cantilever	125 °C	-40 C	Copper Alloy	Wire Wrap	Non Specified - Dual Edge	80	Female	2	40	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Black	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
