11_SMC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

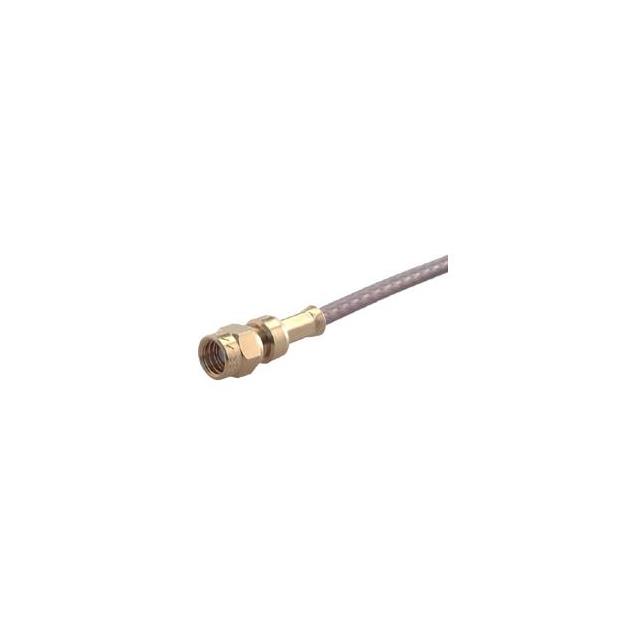

11_SMC-50-2-10/111_NE
| Part | Body Material | Center Contact Plating | Body Finish | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shield Termination | Frequency - Max [Max] | Center Contact Material | Contact Termination | Impedance | Connector Style | Cable Group | Fastening Type | Number of Ports | Housing Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Brass | Gold | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Free Hanging (In-Line) | Crimp | 10 GHz | Beryllium Copper | Crimp | 50 Ohms | SMC | 188 316 RG-174 | Threaded | 1 | Gold | Plug Male Pin |
 Huber+Suhner, Inc. | Brass | Gold | White Bronze | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Free Hanging (In-Line) | Crimp | 10 GHz | Beryllium Copper | Crimp | 50 Ohms | SMC | 188 316 RG-174 | Threaded | 1 | Silver | Plug Male Pin |
 Huber+Suhner, Inc. | Brass | Gold | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Free Hanging (In-Line) | Solder | 10 GHz | Beryllium Copper | Solder | 50 Ohms | SMC | RG-405 (.086 Semi Rigid) | Threaded | 1 | Gold | Plug Male Pin |
 Huber+Suhner, Inc. | Brass | Gold | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Free Hanging (In-Line) | Crimp | 10 GHz | Beryllium Copper | Crimp | 50 Ohms | SMC | RD-316 | Threaded | 1 | Gold | Plug Male Pin |
