LCBX2 Series

Catalog

COPPER COMPRESSION LUG, 1 HOLE, #2 AWG F ROHS COMPLIANT: YES

Part	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID	Diameter - Ring ID	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Contact Material	Width - Outer Edges	Width - Outer Edges	Terminal Type	Termination	Terminal Style	Color	Tab Thickness	Tab Thickness	Stud/Tab Size	Mounting Type	Wire Gauge	Insulation	Diameter - Ring ID	Tab Thickness [custom]	Tab Thickness [custom]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Wire Gauge	Length - Overall

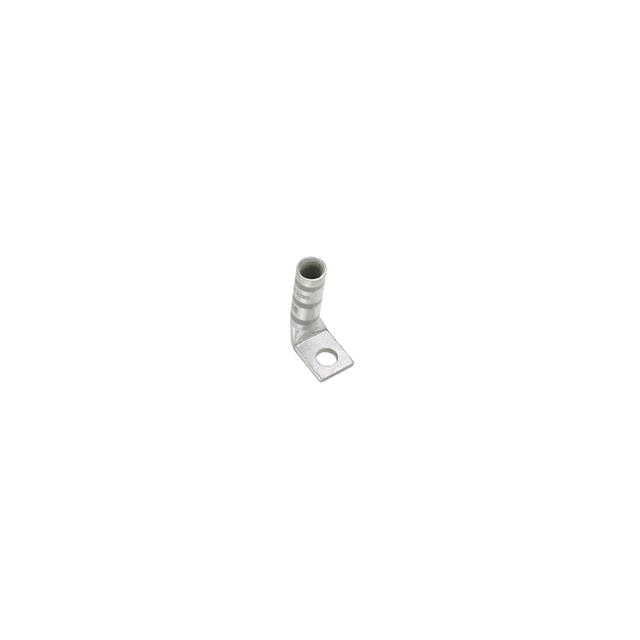

Panduit Corp LCBX2-14F-E	0.36 in	9.14 mm	0.27 in	6.86 mm	0.47 "	11.94 mm	Electro-Tin	Copper	0.7 "	17.78 mm	Rectangular Tongue	Barrel Crimp	Single Stud Hole	Brown	0.11 in	2.79 mm	0.25 Stud	Free Hanging (In-Line) Right Angle	2 AWG	Non-Insulated
Panduit Corp LCBX2-12F-E	0.36 in	9.14 mm		0.53 in	0.47 "	11.94 mm	Electro-Tin	Copper			Rectangular Tongue	Barrel Crimp	Single Stud Hole	Brown			0.5 Stud	Free Hanging (In-Line) Right Angle	2 AWG	Non-Insulated	13.46 mm	0.09 in	2.29 mm	19.05 mm	0.75 in

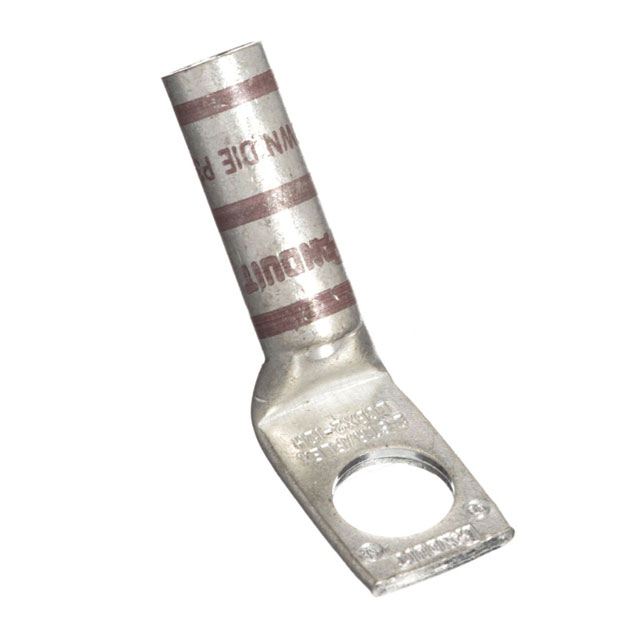

Panduit Corp LCBX2-12-E	0.36 in	9.14 mm		0.53 in	0.47 "	11.94 mm	Electro-Tin	Copper			Rectangular Tongue	Barrel Crimp	Single Stud Hole	Brown			0.5 Stud	Free Hanging (In-Line)	2 AWG	Non-Insulated	13.46 mm	0.09 in	2.29 mm	19.05 mm	0.75 in	68.58 mm	2.7 in
Panduit Corp LCBX2-38F-E	0.36 in	9.14 mm			0.47 "	11.94 mm	Electro-Tin	Copper	0.7 "	17.78 mm	Rectangular Tongue	Barrel Crimp	Single Stud Hole	Brown	0.11 in	2.79 mm	0.375 Stud	Free Hanging (In-Line) Right Angle	2 AWG	Non-Insulated								10.41 mm	0.41 "

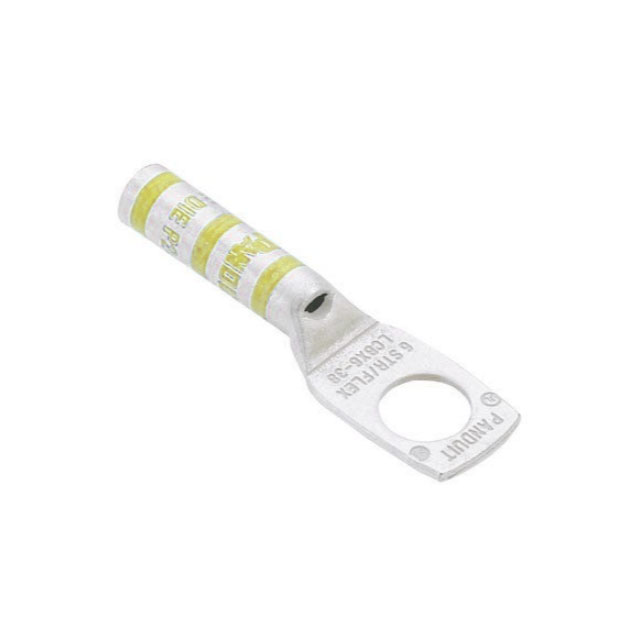

Panduit Corp LCBX250-12-X	0.7 in	17.78 mm		0.53 in	0.88 in	22.35 mm	Electro-Tin	Copper		32.51 mm	Rectangular Tongue	Barrel Crimp	Single Stud Hole	Yellow	0.17 in	4.32 mm	0.5 Stud	Free Hanging (In-Line)	250 kcmil	Non-Insulated	13.46 mm				1.28 "	98.81 mm	3.89 in			250 kcmil
Panduit Corp LCBX250-58-X	0.7 in	17.78 mm			0.88 in	22.35 mm	Electro-Tin	Copper		32.51 mm	Rectangular Tongue	Barrel Crimp	Single Stud Hole	Yellow	0.17 in	4.32 mm	0.625 Stud	Free Hanging (In-Line)	250 kcmil	Non-Insulated					1.28 "		4.1 in	16.76 mm	0.66 in	250 kcmil	104.14 mm

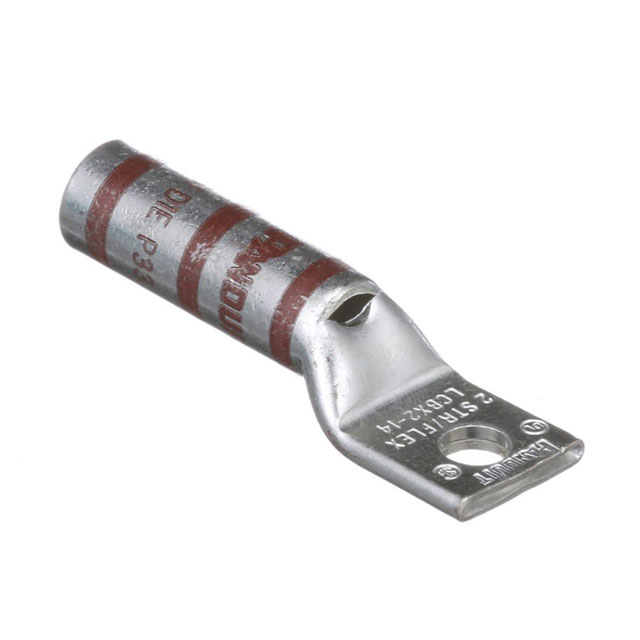

Panduit Corp LCBX2-14-E	0.36 in	9.14 mm	0.27 in	6.86 mm	0.47 "	11.94 mm	Electro-Tin	Copper	0.7 "	17.78 mm	Rectangular Tongue	Barrel Crimp	Single Stud Hole	Brown	0.11 in	2.79 mm	0.25 Stud	Free Hanging (In-Line)	2 AWG	Non-Insulated
