PPPC212 Series

Catalog

CONN HDR 42POS 0.1 GOLD SMD

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Type	Insulation Height [z]	Insulation Height	Pitch - Mating	Pitch - Mating	Insulation Color	Termination	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Fastening Type	Number of Positions	Contact Finish - Mating	Number of Positions Loaded	Number of Rows [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Height [z]

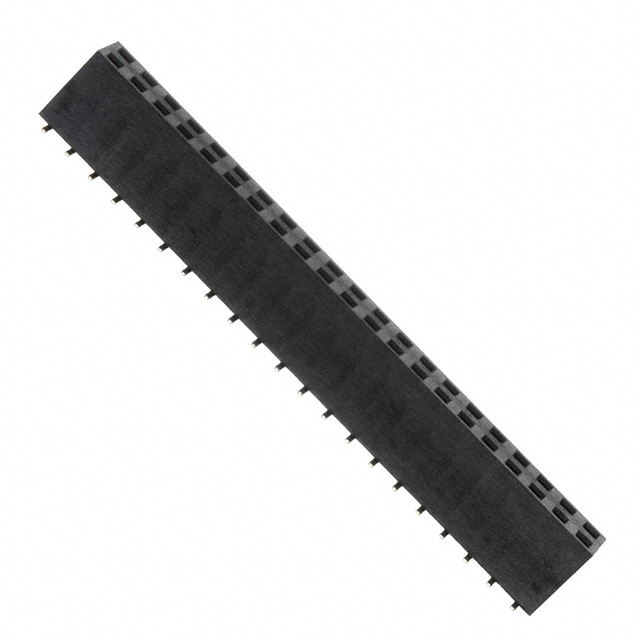

Sullins Connector Solutions PPPC212KFMS	Square	Flash	Phosphor Bronze	Polyester	Female Socket	0.299 "	7.6 mm	0.1 "	2.54 mm	Black	Solder	250 V	125 °C	-40 C	Flash	Header	0.1 in	2.54 mm	Gold	UL94 V-0	Surface Mount	3 A	Push-Pull	42	Gold	All	2

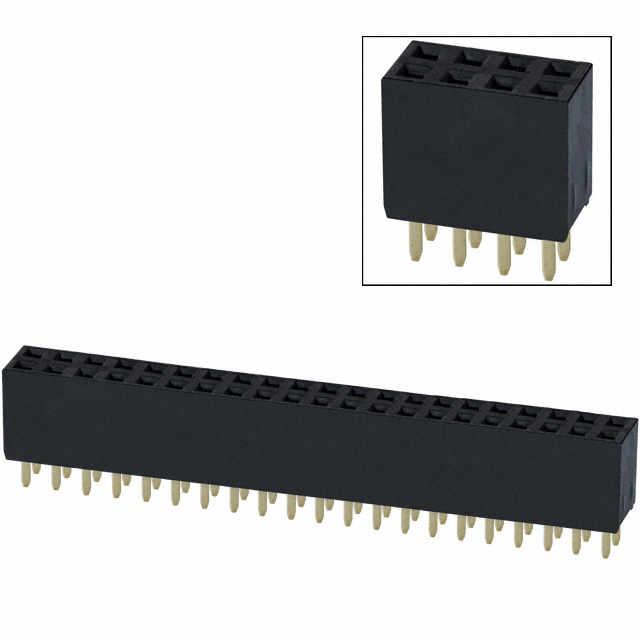

Sullins Connector Solutions PPPC212LFBN-RC	Square	Flash	Phosphor Bronze	Polyester	Female Socket		8.51 mm	0.1 "	2.54 mm	Black	Solder	250 V	105 ░C	-40 C	Flash	Header	0.1 in	2.54 mm	Gold	UL94 V-0	Through Hole	3 A	Push-Pull	42	Gold	All	2	0.126 "	3.2 mm	0.335 "

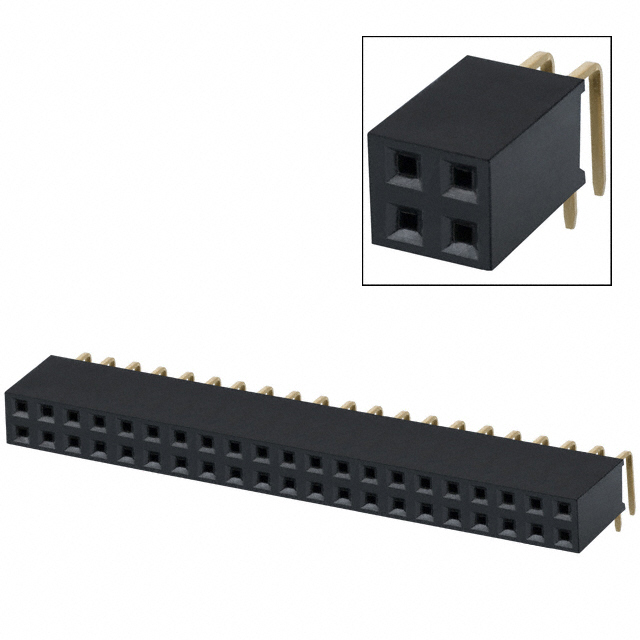

Sullins Connector Solutions PPPC212LJBN	Square	Flash	Phosphor Bronze	Polyester	Female Socket	0.2 in		0.1 "	2.54 mm	Black	Solder	250 V	105 ░C	-40 C	Flash	Header	0.1 in	2.54 mm	Gold	UL94 V-0	Right Angle Through Hole	3 A	Push-Pull	42	Gold	All	2				0.124 in	3.15 mm	5.08 mm
