EZ240D1 Series

Catalog

SSR RELAY SPST-NO 18A 24-280V

Part	Package / Case	Load Current	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Circuit
Sensata-Crydom EZ240D18R	Module	18 A	Chassis Mount	24 V	280 V	Quick Connect - 0.250" (6.3mm)	15 V	3 V	AC	CE CSA cURus TUV	80 °C	-40 C
Sensata-Crydom EZ240D18-B	Module	18 A	Chassis Mount	24 V	280 V	Quick Connect - 0.250" (6.3mm)	15 V	3 V	AC Zero Cross	CE CSA cURus TUV	80 °C	-40 C	SPST-NC (1 Form B)

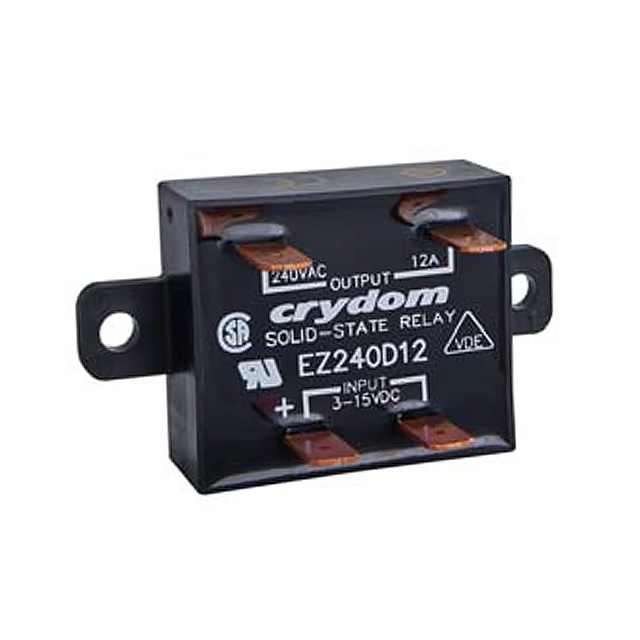

Sensata-Crydom EZ240D18RS	Module	18 A	Chassis Mount	24 V	280 V	Quick Connect - 0.250" (6.3mm)	15 V	3 V	AC	CE CSA cURus TUV	80 °C	-40 C

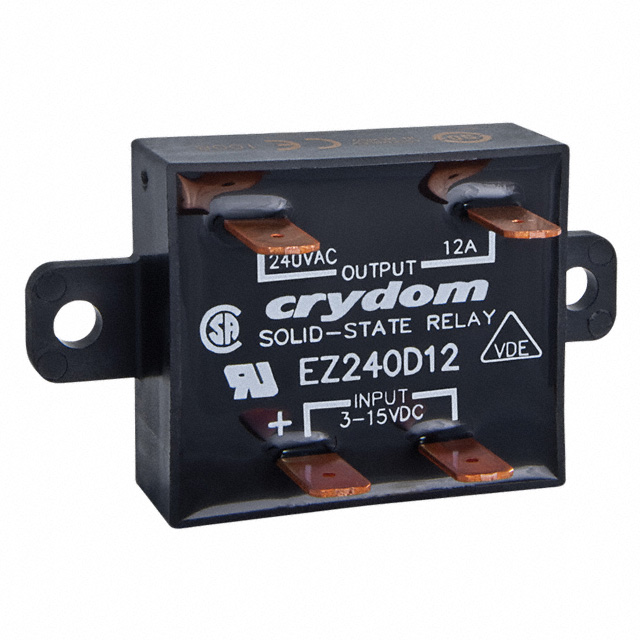

Sensata-Crydom EZ240D12	Module	12 A	Chassis Mount	24 V	280 V	Quick Connect - 0.250" (6.3mm)	15 V	3 V	AC Zero Cross	CE CSA cURus TUV	80 °C	-40 C
Sensata-Crydom EZ240D18S	Module	18 A	Chassis Mount	24 V	280 V	Quick Connect - 0.250" (6.3mm)	15 V	3 V	AC Zero Cross	CE CSA cURus TUV	80 °C	-40 C
