MURSD1660 Series

Catalog

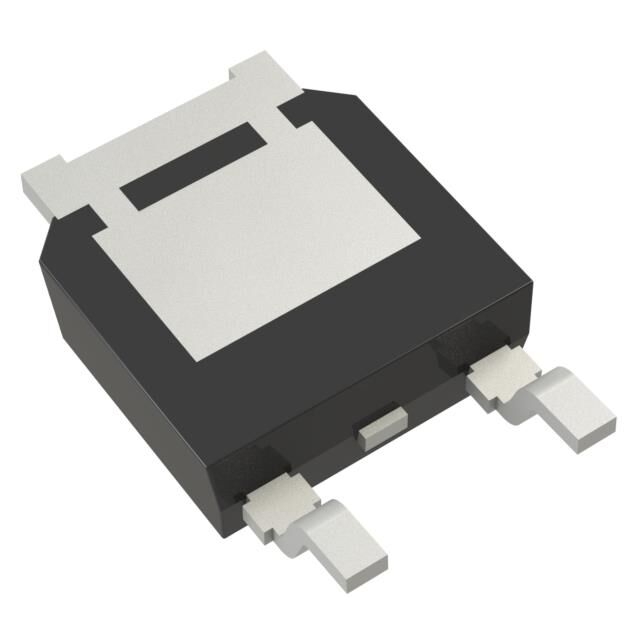

DIODE ARRAY GP 600V 16A TO252

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Diode Configuration	Technology	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Reverse Recovery Time (trr)	Package / Case
Micro Commercial Components MURSD1660CTA-TP	Surface Mount	600 V	16 A	1.6 V	5 µA	1 Pair Common Cathode	Standard	200 mA 500 ns	150 °C	-55 °C	TO-252 (DPAK)	35 ns	DPAK (2 Leads + Tab) SC-63 TO-252-3
Micro Commercial Components MURSD1660CTA-TP	Surface Mount	600 V	16 A	1.6 V	5 µA	1 Pair Common Cathode	Standard	200 mA 500 ns	150 °C	-55 °C	TO-252 (DPAK)	35 ns	DPAK (2 Leads + Tab) SC-63 TO-252-3
