LWC25 Series

Catalog

CBL CLIP WIRE SADDLE NATURAL ADH

Part	Width	Width [x]	Type Attributes	Height [z]	Height [z]	Mounting Type	Shelf Life	Material	Color	Type	Opening Size [diameter]	Opening Size	Length	Length	Adhesive	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Material Flammability Rating	Width [y]	Width [y]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Length [x]	Length [x]

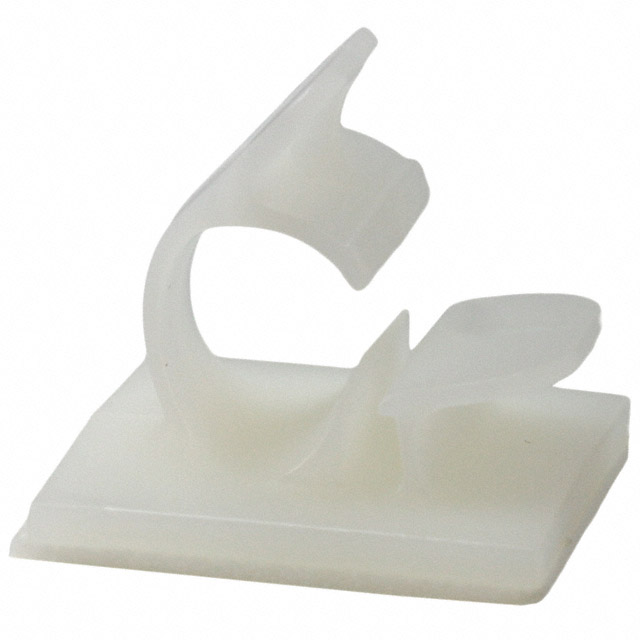

Panduit Corp LWC25-A-C	25.4 mm	1 in	Locking Round	0.45 "	11.43 mm	Adhesive	36 Months	Polyamide (PA66) Nylon 6/6	Natural	Clip Wire Saddle on Base	0.25 in	6.35 mm	22.35 mm	0.88 in	Rubber Based

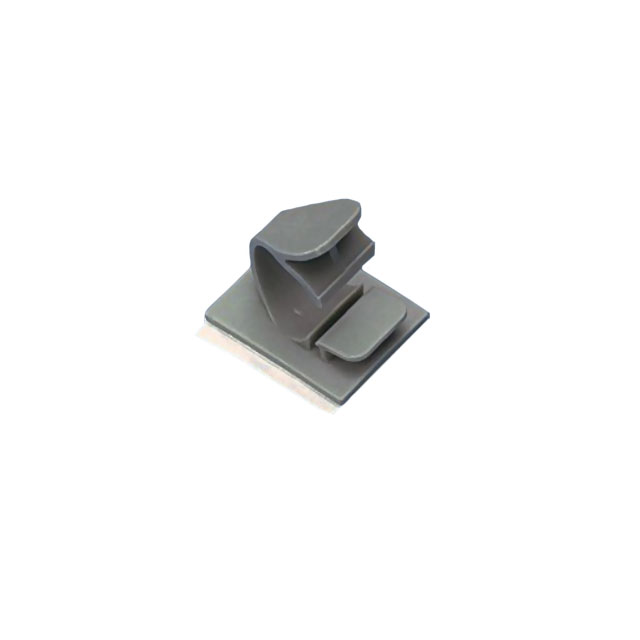

Panduit Corp LWC25-A-D	25.4 mm	1 in	Locking Round	0.45 "	11.43 mm	Adhesive		Polyamide (PA66) Nylon 6/6	Natural	Clip Wire Saddle on Base	0.25 in	6.35 mm	22.35 mm	0.88 in	Rubber Based

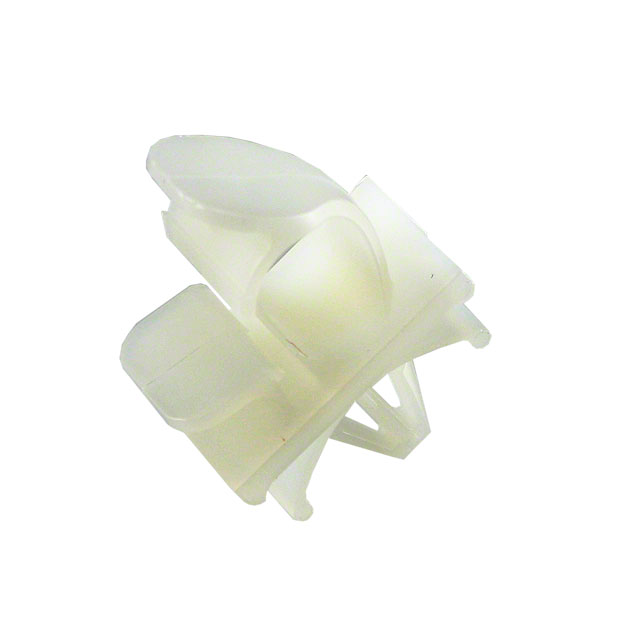

Panduit Corp LWC25-H25-C			Locking Round			Arrowhead Winged		Polyamide (PA66) Nylon 6/6	Natural	Clip Wire Saddle on Base	0.25 in	6.35 mm				0.187 in	0.25 in	4.75 mm	6.35 mm	UL94 V-2	0.58 "	14.73 mm	0.025 in	2.67 mm	0.64 mm	0.105 in	21.84 mm	0.86 in
Panduit Corp LWC25-H25-C14			Locking Round			Arrowhead Winged		Polyamide (PA66) Nylon 6/6	Gray	Clip Wire Saddle on Base	0.25 in	6.35 mm				0.187 in	0.25 in	4.75 mm	6.35 mm	UL94 V-2	0.58 "	14.73 mm	0.025 in	2.67 mm	0.64 mm	0.105 in	21.84 mm	0.86 in

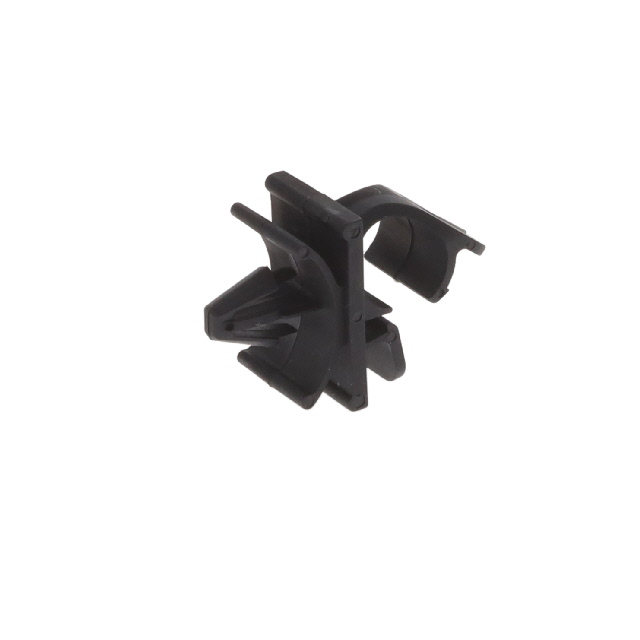

Panduit Corp LWC25-H25-C20			Locking Round			Arrowhead Winged		Polyamide (PA66) Nylon 6/6	Black	Clip Wire Saddle on Base	0.25 in	6.35 mm				0.187 in	0.25 in	4.75 mm	6.35 mm	UL94 V-2	0.58 "	14.73 mm	0.025 in	2.67 mm	0.64 mm	0.105 in	21.84 mm	0.86 in

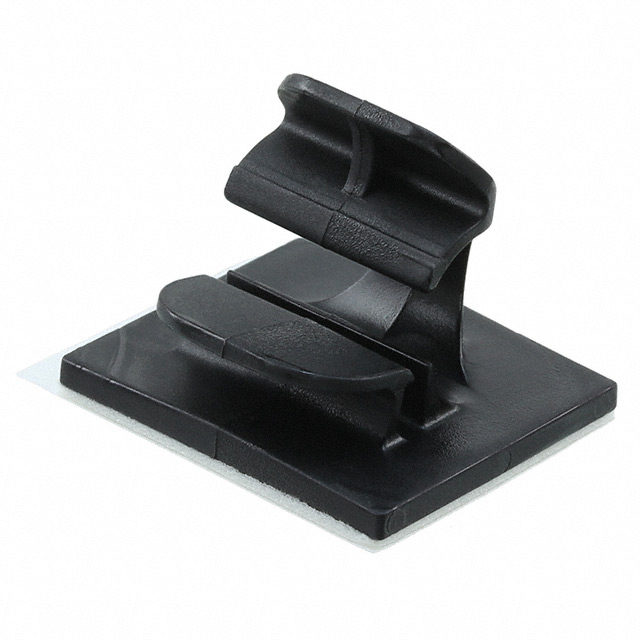

Panduit Corp LWC25-A-C20	25.4 mm	1 in	Locking Round	0.45 "	11.43 mm	Adhesive		Polyamide (PA66) Nylon 6/6	Black	Clip Wire Saddle on Base	0.25 in	6.35 mm	22.35 mm	0.88 in	Rubber Based

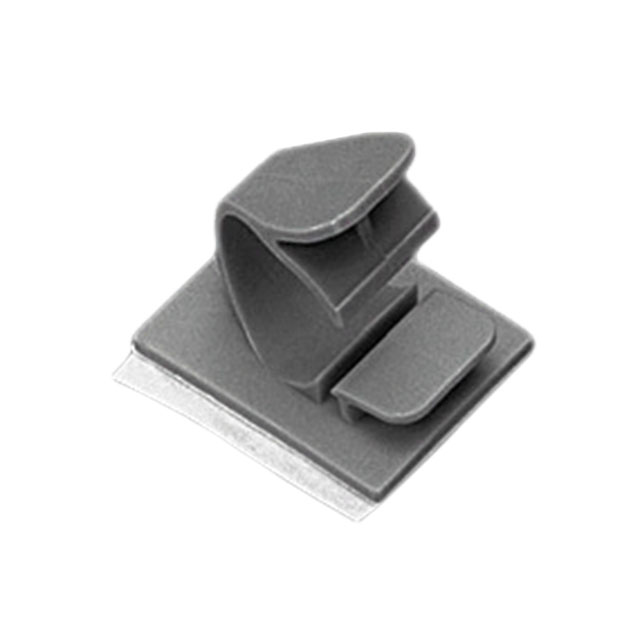

Panduit Corp LWC25-A-D14	25.4 mm	1 in	Locking Round	0.45 "	11.43 mm	Adhesive		Polyamide (PA66) Nylon 6/6	Gray	Clip Wire Saddle on Base	0.25 in	6.35 mm	22.35 mm	0.88 in	Rubber Based
