3106-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

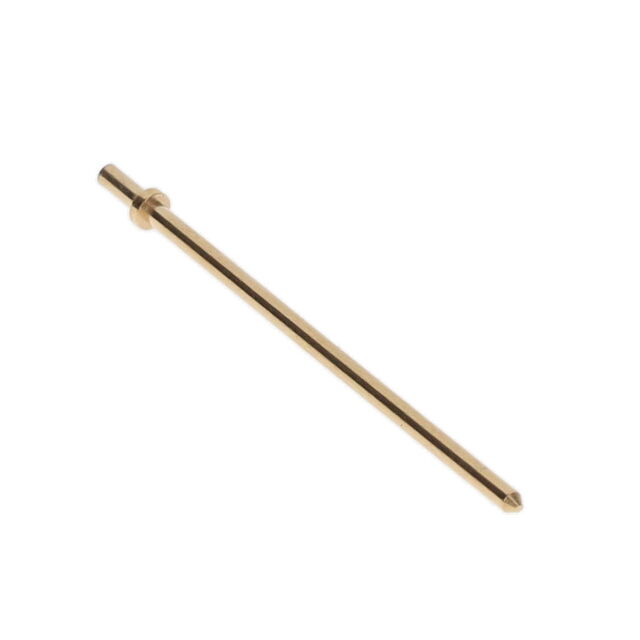

CONN PC PIN CIRC .040DIA GOLD
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Contact Material | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Insulation | Contact Finish | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness [custom] | Board Thickness [custom] | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | Swage | Brass Alloy | 1.133 " | 28.78 mm | 1 in | 25.4 mm | Through Hole | 1.77 mm | 0.07 in | 20 µin | 0.51 µm | PC Pin | Non-Insulated | Gold | Single End | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | 2.87 mm | 0.113 " |
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | Swage | Brass Alloy | 1.133 " | 28.78 mm | 1 in | 25.4 mm | Through Hole | 1.77 mm | 0.07 in | 50 µin | 1.27 µm | PC Pin | Non-Insulated | Gold | Single End | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | 2.87 mm | 0.113 " |
Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | Swage | Brass Alloy | 1.133 " | 28.78 mm | 1 in | 25.4 mm | Through Hole | 1.78 mm | 0.07 in | 200 Áin | 5.08 Ám | PC Pin | Non-Insulated | Tin | Single End | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | 2.87 mm | 0.113 " |
