G32KAC-P Series
Manufacturer: ODU
Beta
⌘K

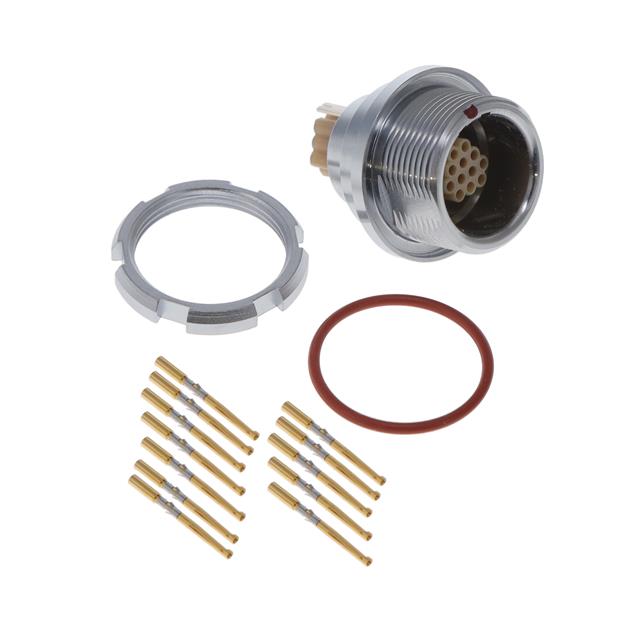

ODU MINI-SNAP RECEPT, STY 3, SZ
| Part | Mounting Type | Mounting Feature | Current Rating (Amps) | Applications | Contact Finish - Mating | Shell Finish | Voltage Rating | Connector Type | Shielding | Shell Size - Insert [custom] | Insert Material | Color | Fastening Type | Contact Material | Primary Material | Shell Material | Features | Orientation | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panel Mount | Bulkhead - Front Side Nut | 16 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 800 V | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Ground | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | |||
Panel Mount | Bulkhead - Front Side Nut | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 300 VDC | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Ground | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 16 | ||
Panel Mount | Bulkhead - Front Side Nut | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 48 VDC | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Medical (IEC 60601 (2 MOOP/2 MOPP)) | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 12 | Crimp | |
Panel Mount Through Hole | Bulkhead - Front Side Nut | 4 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 300 VDC | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Ground | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 26 | Solder | |
Panel Mount | Bulkhead - Front Side Nut | 10 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 48 VDC | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Medical (IEC 60601 (2 MOOP/2 MOPP)) | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 8 | Crimp | |
Panel Mount Through Hole | Bulkhead - Front Side Nut | 6 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 333 V | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Ground | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 19 | Solder | |
Panel Mount Through Hole | Bulkhead - Front Side Nut | 6 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 366 V | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Ground | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 16 | Solder | |
Panel Mount | Bulkhead - Front Side Nut | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 300 VDC | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Ground | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 19 | Crimp | |
Panel Mount | Bulkhead - Front Side Nut | 6 A | Gold | Chrome | Receptacle Female Sockets | Shielded | 2 | Silver | Detent Lock Push-Pull | Metal | Brass | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 16 | Solder | ||||||
Panel Mount | Bulkhead - Front Side Nut | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Chrome over Nickel | 300 VDC | Receptacle Female Sockets | Shielded | 2 | Polyetheretherketone (PEEK) | Silver | Push-Pull | Brass | Metal | Brass | Ground | A | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 16 | Crimp |
