MXZ8-PW Series
Manufacturer: Lumileds
Beta
⌘K

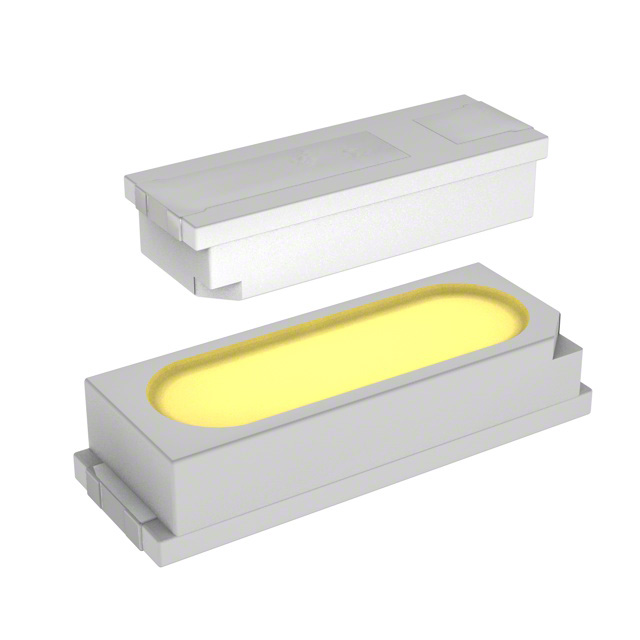

LED LUXEON WARM WHITE 2200K 2SMD
| Part | Thermal Resistance of Package | Height - Seated (Max) [Max] | Height - Seated (Max) | Supplier Device Package | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | CCT (K) | Color | Package / Case | Flux @ 25°C, Current - Test | Current - Max [Max] | Mounting Type | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 45 °C/W | 0.031 in | 0.8 mm | 4014 | 0.055 in | 1.4 mm | 0.157 in | 4 mm | 2200 K | Warm White | 1606 (4014 Metric) | 10 lm | 90 mA | Surface Mount | 80 | 115 lm/W | 2.9 V | 30 mA |
Lumileds | 45 °C/W | 0.031 in | 0.8 mm | 4014 | 0.055 in | 1.4 mm | 0.157 in | 4 mm | 5000 K | Cool White | 1606 (4014 Metric) | 12 lm | 90 mA | Surface Mount | 80 | 138 lm/W | 2.9 V | 30 mA |
