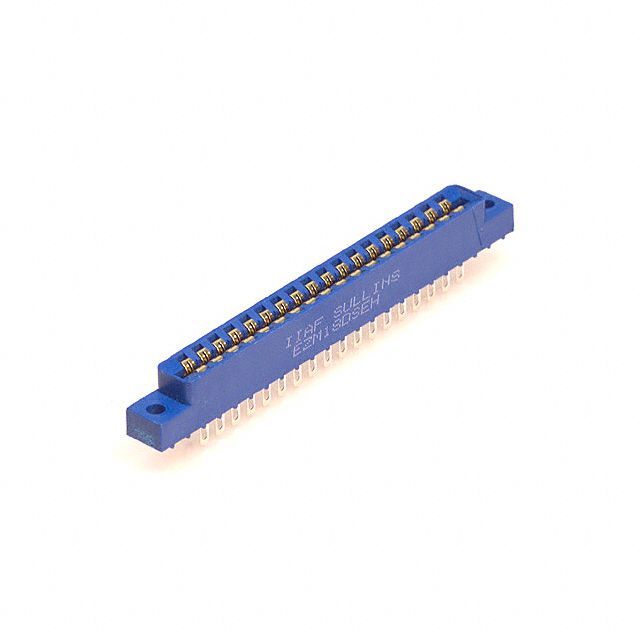

EZM18 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 36POS 0.156
| Part | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Color | Read Out | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Finish | Mounting Type | Contact Type | Number of Positions/Bay/Row [custom] | Card Thickness | Card Thickness | Gender | Contact Material | Number of Positions | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.125 " | 3.18 mm | Blue | Dual | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Panel Mount | Full Bellows | 18 | 1.57 mm | 0.062 in | Female | Phosphor Bronze | 36 | Solder Eyelet(s) | -65 ░C | 125 °C | Non Specified - Dual Edge |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.125 " | 3.18 mm | Blue | Dual | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Panel Mount | Full Bellows | 18 | 1.57 mm | 0.062 in | Female | Phosphor Bronze | 36 | Solder Eyelet(s) | -65 ░C | 125 °C | Non Specified - Dual Edge |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.125 " | 3.18 mm | Blue | Dual | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Through Hole | Full Bellows | 18 | 1.57 mm | 0.062 in | Female | Phosphor Bronze | 36 | Solder | -65 ░C | 125 °C | Non Specified - Dual Edge |
