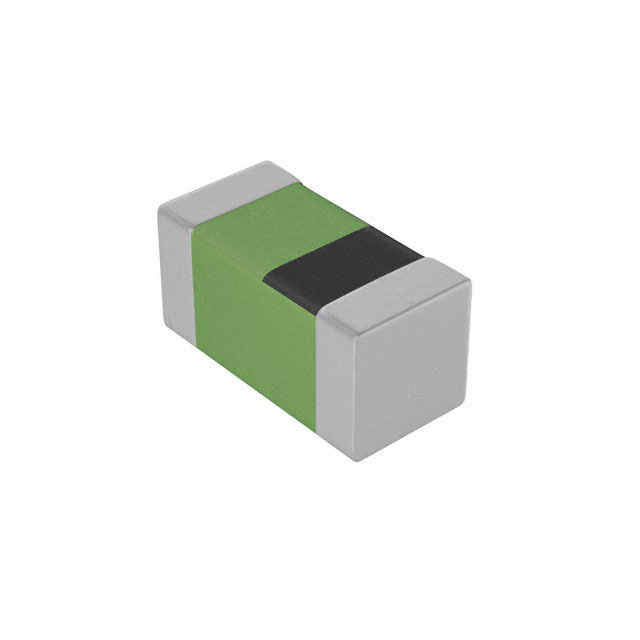

LQG15WH Series

Manufacturer: Murata Power Solutions Inc.

Catalog

Catalog

INDUCTOR, 4.1NH, 5GHZ, 0402 ROHS COMPLIANT: YES

...

Part	Package / Case	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Ratings	DC Resistance (DCR)	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Tolerance	Type	Mounting Type	Q @ Freq	Supplier Device Package	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Power Solutions Inc. LQG15WH4N1B02D	0402 (1005 Metric)	800 mA	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200	100 mOhm	5 GHz	-55 °C	125 °C	4.1 nH	0.1 nH	Multilayer	Surface Mount	23 250 MHz	0402	Unshielded	0.022 in	0.55 mm
Murata Power Solutions Inc. LQG15WH16NJ02D	0402 (1005 Metric)	0.26 A	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200		2.3 GHz	-55 °C	125 °C	16 nH	5 %	Multilayer	Surface Mount	20 250 MHz	0402	Unshielded	0.022 in	0.55 mm	800 mOhm
Murata Power Solutions Inc. LQG15WHR13H02D	0402 (1005 Metric)	110 mA	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200		800 MHz	-55 °C	125 °C	130 nH	3 %	Multilayer	Surface Mount	22 250 MHz	0402	Unshielded	0.022 in	0.55 mm	2.9 Ohm
Murata Power Solutions Inc. LQG15WH68NG02D	0402 (1005 Metric)	160 mA	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200		1.1 GHz	-55 °C	125 °C	68 nH	2 %	Multilayer	Surface Mount	22 250 MHz	0402	Unshielded	0.022 in	0.55 mm	2 Ohm
Murata Power Solutions Inc. LQG15WH2N8B02D	0402 (1005 Metric)	900 mA	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200		6.5 GHz	-55 °C	125 °C	2.8 nH	0.1 nH	Multilayer	Surface Mount	23 250 MHz	0402	Unshielded	0.022 in	0.55 mm	80 mOhm
Murata Power Solutions Inc. LQG15WH1N2S02D	0402 (1005 Metric)	1.2 A	1 mm	0.024 "	0.6 mm	0.039 in	100 MHz	AEC-Q200		13 GHz	-55 °C	125 °C	1.2 nH	0.3 nH	Multilayer	Surface Mount		0402 (1005 Metric)	Unshielded			30 mOhm	Air	0.02 in	0.51 mm
Murata Power Solutions Inc. LQG15WH2N8C02D	0402 (1005 Metric)	900 mA	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200		6.5 GHz	-55 °C	125 °C	2.8 nH	0.2 nH	Multilayer	Surface Mount	23 250 MHz	0402	Unshielded	0.022 in	0.55 mm	80 mOhm
Murata Power Solutions Inc. LQG15WHR10G02D	0402 (1005 Metric)	150 mA	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200	2.5 Ohm	900 MHz	-55 °C	125 °C	100 nH	2 %	Multilayer	Surface Mount	23 250 MHz	0402	Unshielded	0.022 in	0.55 mm
Murata Power Solutions Inc. LQG15WH3N2S02D	0402 (1005 Metric)	900 mA	1 mm	0.02 in	0.5 mm	0.039 in	100 MHz	AEC-Q200		6 GHz	-55 °C	125 °C	3.2 nH	0.3 nH	Multilayer	Surface Mount	23 250 MHz	0402	Unshielded	0.022 in	0.55 mm	90 mOhm
Murata Power Solutions Inc. LQG15WH11NJ02D	0402 (1005 Metric)	450 mA	1 mm	0.024 "	0.6 mm	0.039 in	100 MHz	AEC-Q200	220 mOhm	3 GHz	-55 °C	125 °C	10 nH	5 %	Multilayer	Surface Mount		0402 (1005 Metric)	Unshielded				Air	0.02 in	0.51 mm
