ERA.2S Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 3P GOLD SLDR CUP

Part	Contact Material	Current Rating (Amps)	Shielding	Mounting Type	Shell Finish	Contact Finish - Mating	Material Flammability Rating	Ingress Protection	Color	Shell Material	Connector Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Mounting Feature	Fastening Type	Insert Material	Orientation	Number of Positions	Body Finish	Dielectric Material	Body Material	Mating Cycles	Includes	Center Contact Plating	Impedance	Cable Group	Housing Color	Center Contact Material	Connector Style	Contact Termination	Shield Termination	Number of Ports	Shell Size - Insert [custom]

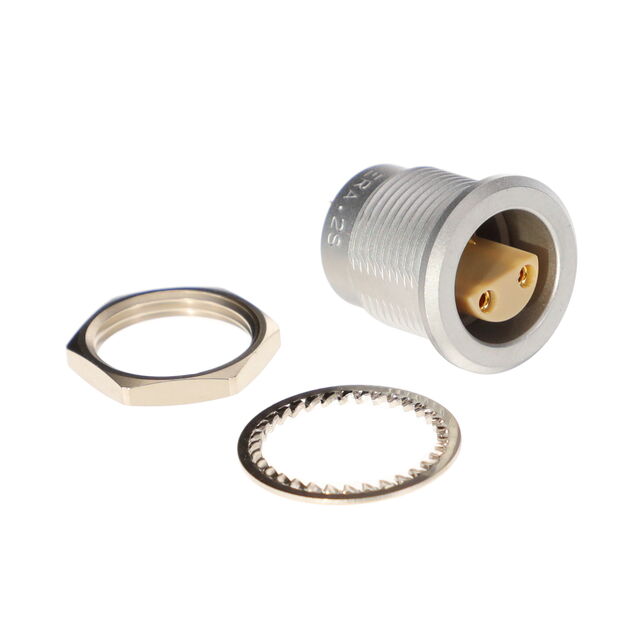

LEMO ERA.2S.303.CLL	Brass Bronze	15 A	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets and Male Pins	Metal	-55 C	250 °C	303	Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed

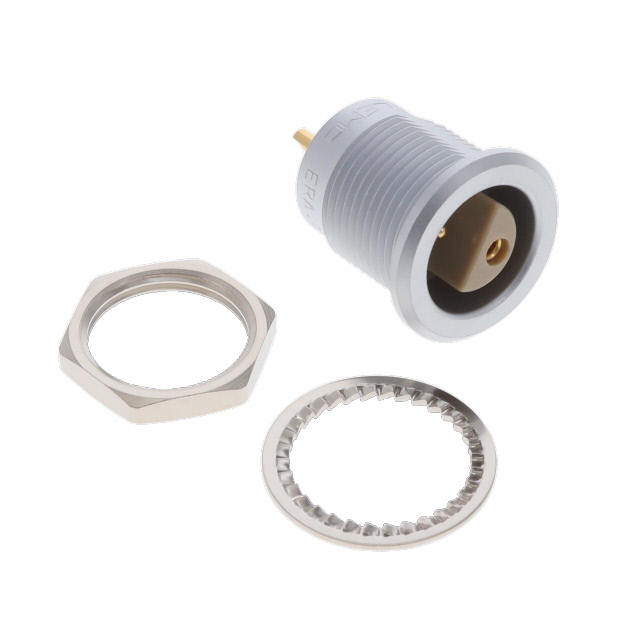

LEMO ERA.2S.302.CLL	Brass Bronze	20 A	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets and Male Pins	Metal	-55 C	250 °C	302	Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed	2
LEMO ERA.2S.305.CLL	Brass Bronze	13 A	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets and Male Pins	Metal	-55 C	250 °C	305	Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed	5

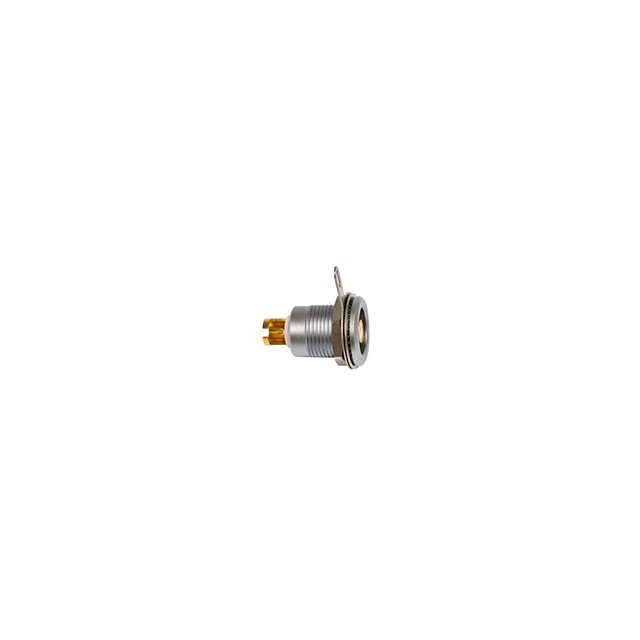

LEMO ERA.2S.650.CTL				Panel Mount				IP50 - Dust Protected			Receptacle Female Socket		-55 C	200 °C		Bulkhead - Rear Side Nut	Push-Pull				Chrome	Polytetrafluoroethylene (PTFE)	Brass	1000	1 Connector 1 Lockwasher 1 Nut	Gold	50 Ohms	8232A 9222 Belden 8215 RG-174	Silver	Beryllium Copper	Triaxial	Solder Cup	Solder
LEMO ERA.2S.408.CLL	Bronze	10 A	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets	Metal	-55 C	250 °C	408	Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed	1
LEMO ERA.2S.250.CTL				Panel Mount				IP50 - Dust Protected			Receptacle Female Socket		-55 C	200 °C		Bulkhead - Rear Side Nut	Push-Pull				Chrome	Polytetrafluoroethylene (PTFE)	Brass	1000	1 Connector 1 Lockwasher 1 Nut	Gold	50 Ohms	223 302 400 59B RG-58C	Silver	Beryllium Copper	Coaxial	Solder Cup	Solder	1
LEMO ERA.2S.307.CLL	Brass Bronze	9 A 12 Amps	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets and Male Pins	Metal	-55 C	250 °C		Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed	7															307

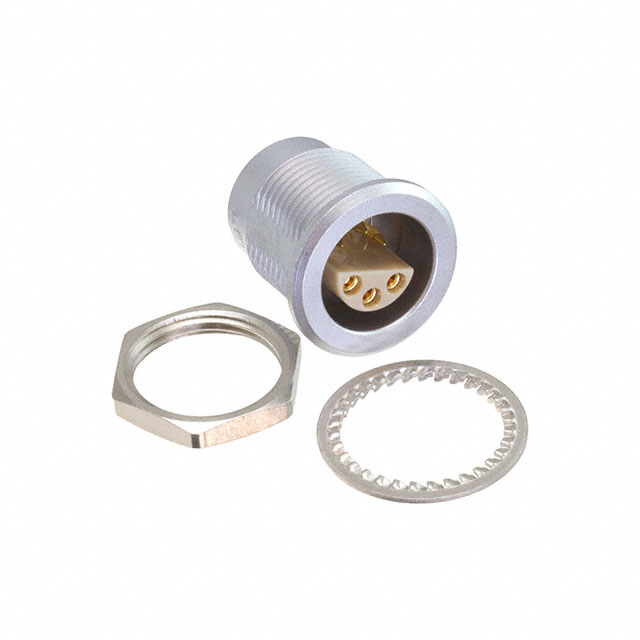

LEMO ERA.2S.306.CLL	Brass Bronze	12 Amps	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets and Male Pins	Metal	-55 C	250 °C	306	Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed	6

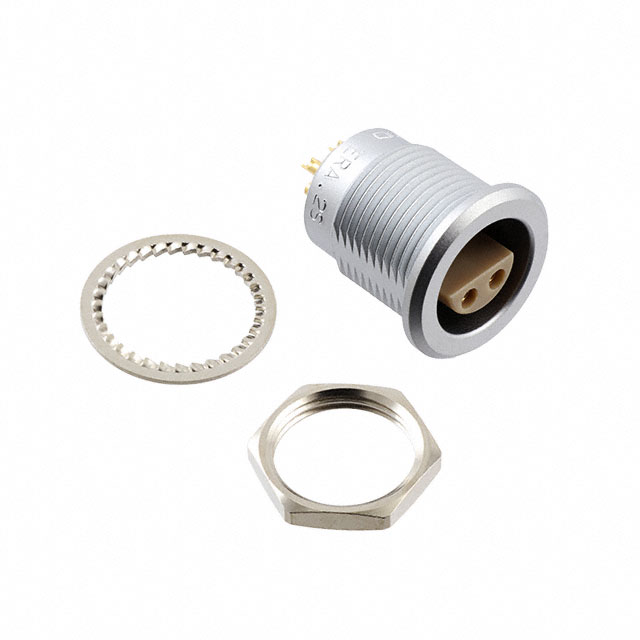

LEMO ERA.2S.304.CLL	Brass Bronze	15 A	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets and Male Pins	Metal	-55 C	250 °C	304	Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed	4
LEMO ERA.2S.140.CLL	Bronze	40 A	Shielded	Panel Mount	Chrome	Gold	UL94 V-0	IP50 - Dust Protected	Silver	Brass	Receptacle Female Sockets	Metal	-55 C	250 °C	140	Bulkhead - Rear Side Nut	Push-Pull	Polyetheretherketone (PEEK)	Keyed	1
